Description

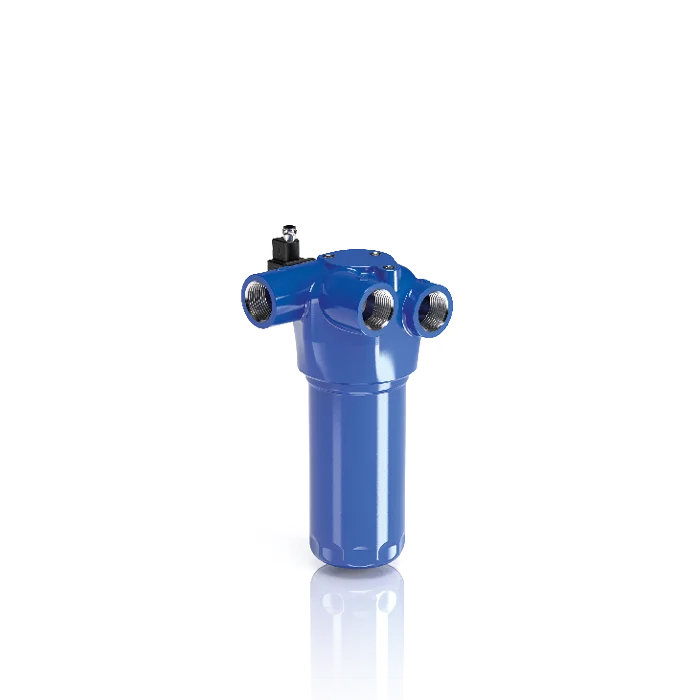

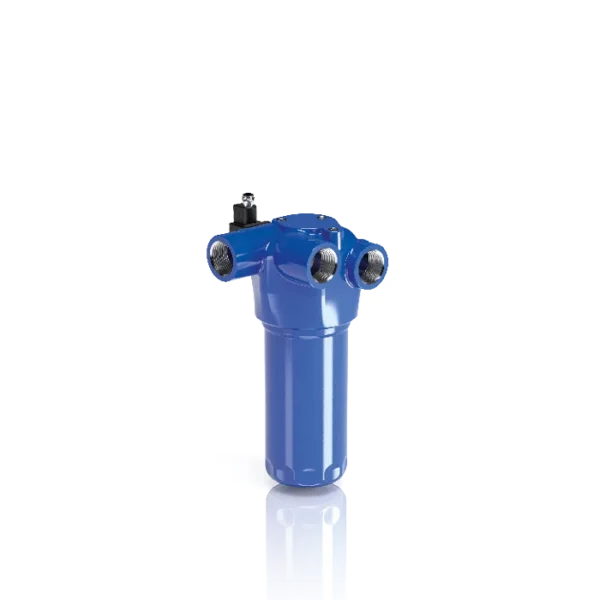

MP Filtri LMP 124 in-line return/suction filter has working pressure of 80 bar (1160 psi), flow rates up to 200 litres/minute, and female threaded connections, 1” BSP/SAE. These filters are for use on hydraulic systems with two or more circuits (both open and closed loops). They are able to provide pressurised oil cleaned by fine filtration to the feed pump.
Features of LMP124 filters include:
- Fine filtration rating
- Bypass valve to the tank, to relieve excessive pressure drop across the filter media when the return flow is sufficiently higher than the suction flow
- Bypass valve to the suction line with additional suction filter element, to relieve excessive pressure drop across the filter media when the return flow is not sufficiently higher than the suction flow
- Bypass valve opening pressure 250 kPa (2.5 bar) ±10%, other opening pressures on request
- De-pressurisation valve, to reduce the pressure inside the filter during maintenance
- Visual, electrical and electronic differential clogging indicators
- Seals: standard NBR, series A | optional FPM, series V
- Temperature: from -25 °C to +110 °C
- MP Filtri LMP 124 filters are provided for vertical mounting
Filter housing materials:
- Head: aluminium
- Housing: cataphoresis – painted steel
- Bypass valve: brass – aluminium
Pressure:
- Test pressure: 12MPa (120 bar)
- Burst pressure: 38 MPa (380 bar)
- Pulse pressure fatigue test: 1,000,000 cycles, with pressure from 0 to 80 bar (8 MPa)
Contact us for further technical details and configuration options.
