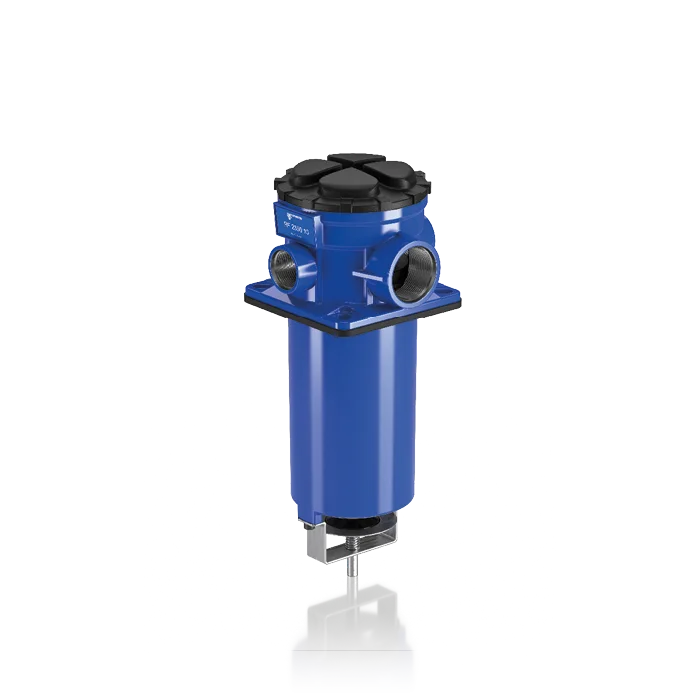

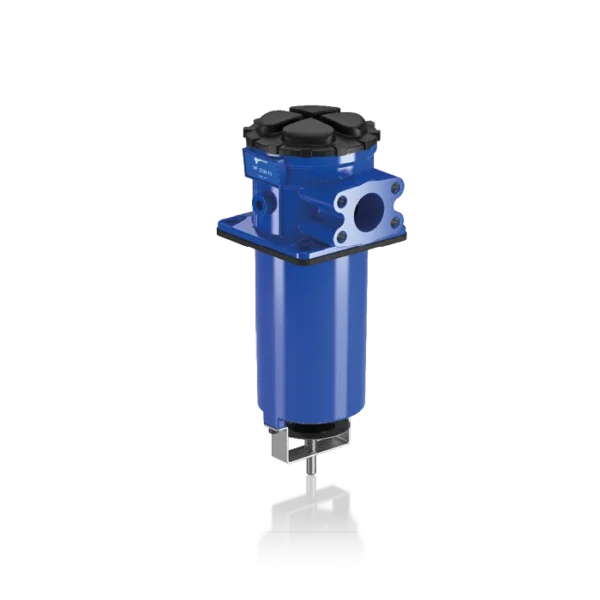

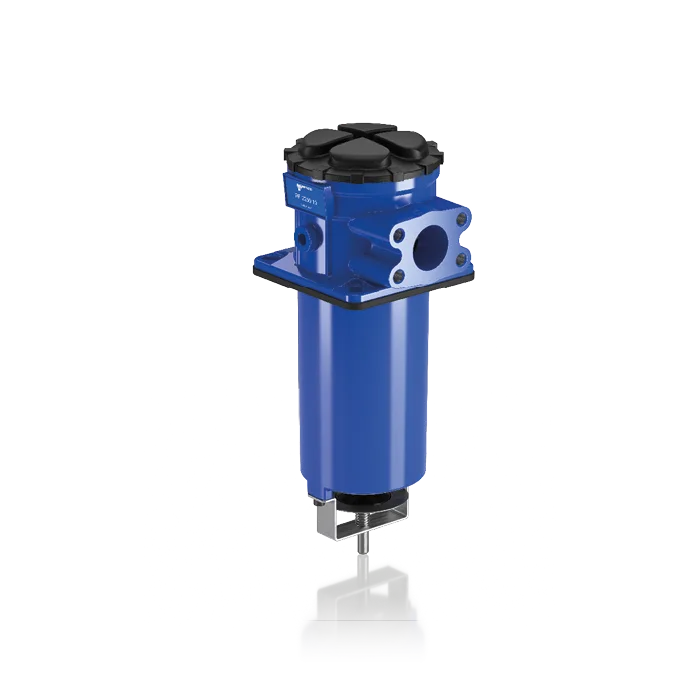

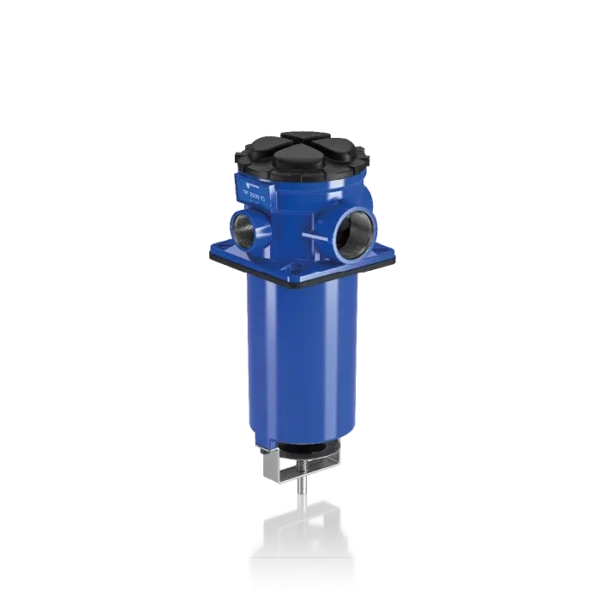

MP Filtri RFMC Side-Tank Mounted Return Filters

MP Filtri RFMC return filters have a working pressure of up to 20 bar (290 psi) and flow rates up to 615 litres/minute, with female threaded connections up to 1″ and flanged connections up to 1 1/2″.

RFMC filters are designed for side-tank mounting with an integrated shut-off valve, protecting the reservoir against system contamination. They sit below the minimum oil level, connected directly to the system’s return line. The shut-off valve closes automatically when the cover is removed, allowing the filter element to be replaced without fluid loss.

The MP Filtri RFMC series comprises: RFMC250

Features of MP Filtri RFMC filters include:

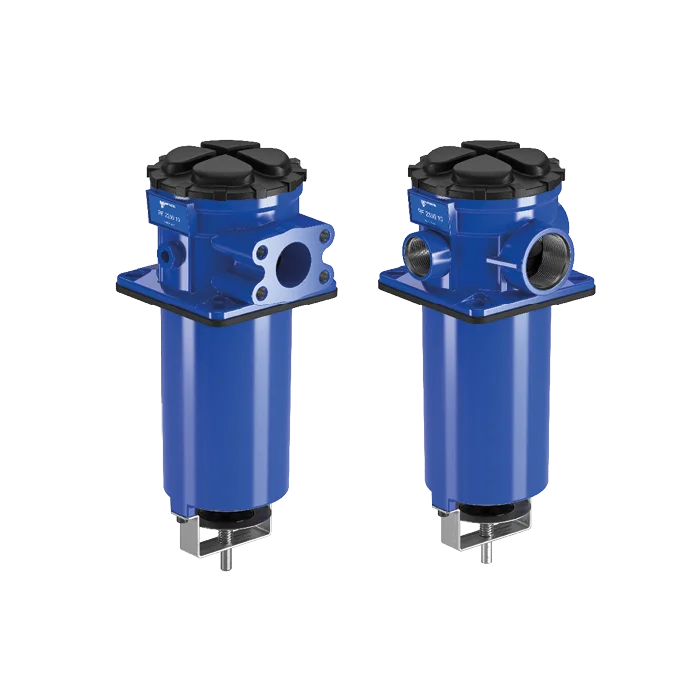

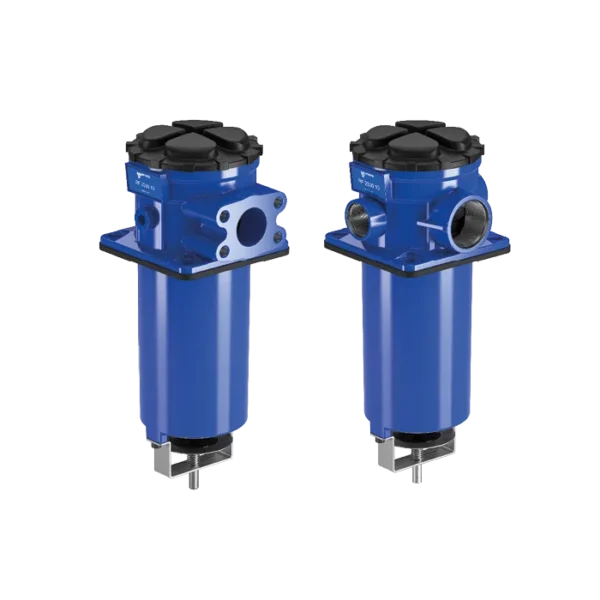

• Female threaded connections up to 1″ and flanged connections up to 1 1/2″, for a maximum flow rate of 615 litres/minute
• Automatic shut-off valve, to allow filter element replacement without fluid loss
• Bypass valve, to relieve excessive pressure drop across the filter media; opening pressure 175 kPa (1.75 bar) ±10%
• Magnetic filter, to hold ferrous particles
• Visual, electrical and electronic clogging indicators
• Seals: standard NBR, series A | optional FPM, series V
• Temperature: from -25 °C to +110 °C

Common applications: compact mobile machines, compact industrial equipment.

Filter housing materials:

• Filter body: aluminium
• Cover: polyamide, GF reinforced
• Valve: polyamide, GF reinforced, and steel
• Anti-emptying valve: steel

Pressure:

• Test pressure: 3 MPa (30 bar)
• Burst pressure: 6 MPa (60 bar)
• Pulse pressure fatigue test: 1,000,000 cycles with pressure from 0 to 2 MPa (20 bar)
