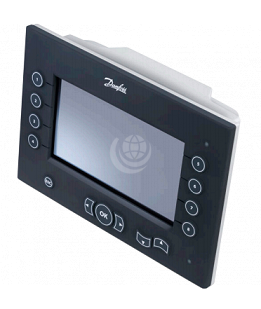

Danfoss PLUS+1® Mobile Machine Display – DP6XX Series

Hydraulic Control Systems


The Danfoss DP6XX series falls within the PLUS +1® family of mobile machine management products. The DP6XX design provides mobile machine OEMs with a rugged, high-performing colour display, both in cab and open usage. With two external video inputs providing system overview, mobile equipment is ensured safe operation.

Features of the Danfoss DP6XX include robust mechanical, electrical and environmental specifications that meet the harsh operating conditions found in mobile machine applications. General characteristics:

  • User-programmable with PLUS+1® GUIDE (Graphical User Integrated Development Environment);
  • Same outside dimensions for both screen variants;
  • Protective glass integrated into keypad provides superior antiglare and contrast control under all light conditions;
  • Two mounting options;
  • Fully integrated connectors and silicone keypad provide water and dust protection from all sides;
  • Wide storage and operating temperature range;
  • GORE-TEX® membrane prevents moisture ingress and screen fogging;
  • Keypad with 14 buttons (8 soft-keys + 6 buttons for navigation);
  • All buttons have green backlight design for low light and night use;
  • Ultra-bright red alarm LED;
  • On board real-time clock;
  • USB port for fast software downloads and uploads;
  • Integrated light sensor for automatic back-light adjustment;
  • Inputs for external menu navigation button give the driver full control while driving;
  • Digital output for external ALARM buzzer;
  • Up to two external video inputs;
  • CE compliant.

Contact us for further technical details and configuration options.
