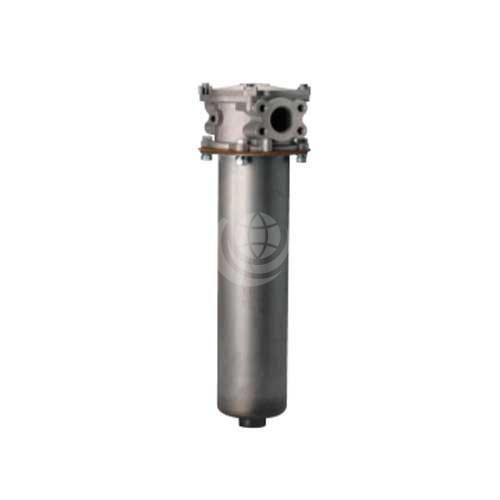

Donaldson WL16 In-Tank Filters


Donaldson WL16 filters are in-tank filters with an aluminium head and steel housing.

They meet the HF4 automotive standard and are designed for low pressure applications including: cooling circuits, fluid conditioning systems, lube oil systems, process systems, return lines and side loop systems.

An optional secondary inlet port means that a second return line can be used. They can be top or side reservoir mounted; an optional anti-backflow valve (X011053) should be used when installing this filter assembly to the side of a reservoir

They have a quick disconnect cover that enables easy and efficient filter changes.

Maximum working pressures go to 13.8 bar (200 psi) and rated static burst to 20.7 bar (300 psi). Their flow range is to 568 litres/minute and operating temperature range is -43°C to 121°C (-45°F to 250°F). Standard bypass ratings are: 3.5 bar (50 psi) and 1.72 bar (25 psi).

Download the Donaldson WL16 Technical Catalogue >>>

Contact us for further technical details and configuration options.
