HydraForce Directional Control SP10-57D Spool-Type, 5-Way, 3-Position, with Load Sense

Description

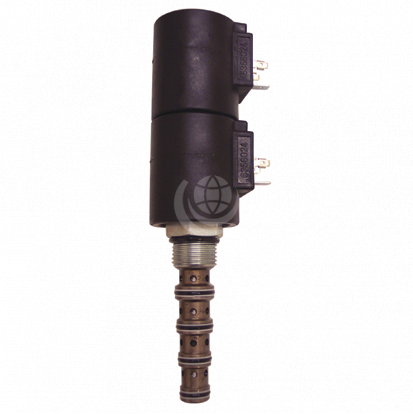

HydraForce SP10-57D solenoid-operated, 5-way, 3-position, proportional, spool-type, screw-in hydraulic cartridge valve with integral load sense port.

When de-energised, the SP10-57D blocks flow at 5 while allowing flow from 2 to 3, and from 4 to 3. When coil S1 is energised flow is allowed from 5 to 2, and from 4 to 3. When coil S2 is energised flow is allowed from 5 to 4, and from 2 to 3. Load sense is connected to port 5 when the spool is in shifted positions.

Features:

  • Continuous-duty rated solenoid
  • Hardened precision spool and cage for long life
  • Optional coil voltages and terminations
  • Manual override option
  • Optional waterproof E-Coils rated up to IP69K
  • Cartridges are voltage interchangeable

Ratings for the HydraForce SP10-57D valve:

  • Operating pressure: 250 bar (3625 psi)
  • Flow: up to 22.7 lpm (6 gpm)
  • Internal leakage: 246 cc/minute (15 cu. in./minute) max. at 207 bar (3000 psi)
  • Temperature:
    • -40° to 100°C (-40° to 212°F) with Buna seals
    •  -26° to 204°C (-15° to 400°F) with Fluorocarbon seals;
  • Coil duty rating: Continuous up to 115% of nominal voltage
