HydraForce Directional Control SP12-20 Poppet-Type, 2-Way, Normally Closed

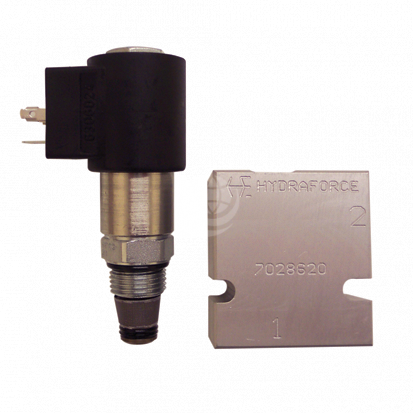

HydraForce SP12-20 solenoid-operated, 2-way, normally closed, proportional, poppet-type, screw-in hydraulic cartridge valve for blocking or load-holding applications.

When de-energised, the SP12-20 acts as a check valve, allowing flow from 1 to 2, while blocking flow from 2 to 1. When energised, the cartridge’s poppet lifts to open the 2 to 1 flow path. Flow is proportional to current applied to the coil. Flow varies with manual override.

Features:

• Continuous-duty rated coil
• Efficient wet-armature construction
• Manual override option
• Optional waterproof E-Coils rated up to IP69K
• Industry common cavity
• Metering option

Ratings for the HydraForce SP12-20 valve:

• Operating pressure: 250 bar (3625 psi)
• Flow: without manual override: up to 100 lpm (27 gpm) at 34.5 bar (500 psi); with manual override M or T: up to 95.6 lpm (25.25 gpm) at 34.5 bar (500 psi)
  with manual override Y or J: up to 68.1 lpm (18 gpm) at 34.5 bar (500 psi)
• Minimum operating dither/pulse frequency: 70 Hz
• Hysteresis: less than 5% up to 60% of I-max; less than 10% above 60% of I-max
• Internal leakage: 5 drops/minute max. at 250 bar (3625 psi)
• Temperature:
  • -40° to 100°C (-40° to 212°F) with Buna seals
  • -26° to 204°C (-15° to 400°F) with fluorocarbon seals
  • -54° to 104°C (-65° to 225°F) with polyurethane seals

Contact us for further technical details and configuration options.
