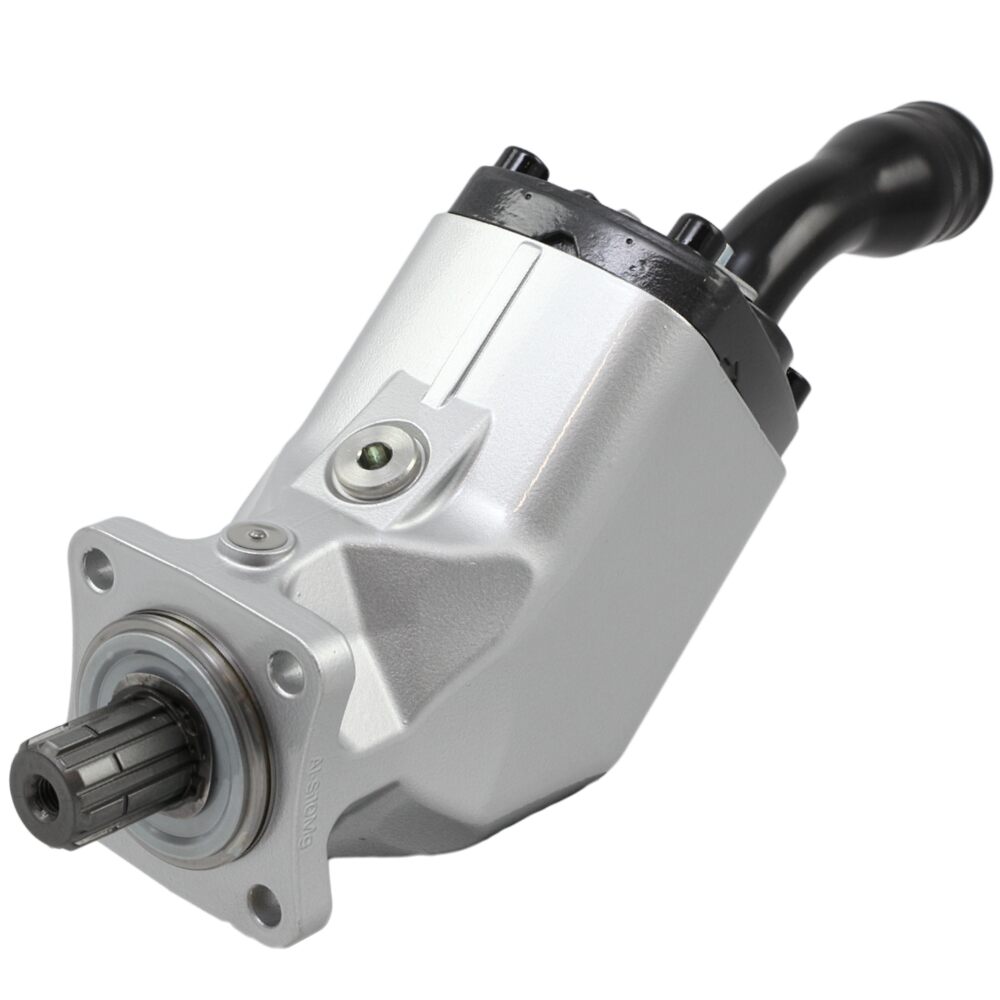

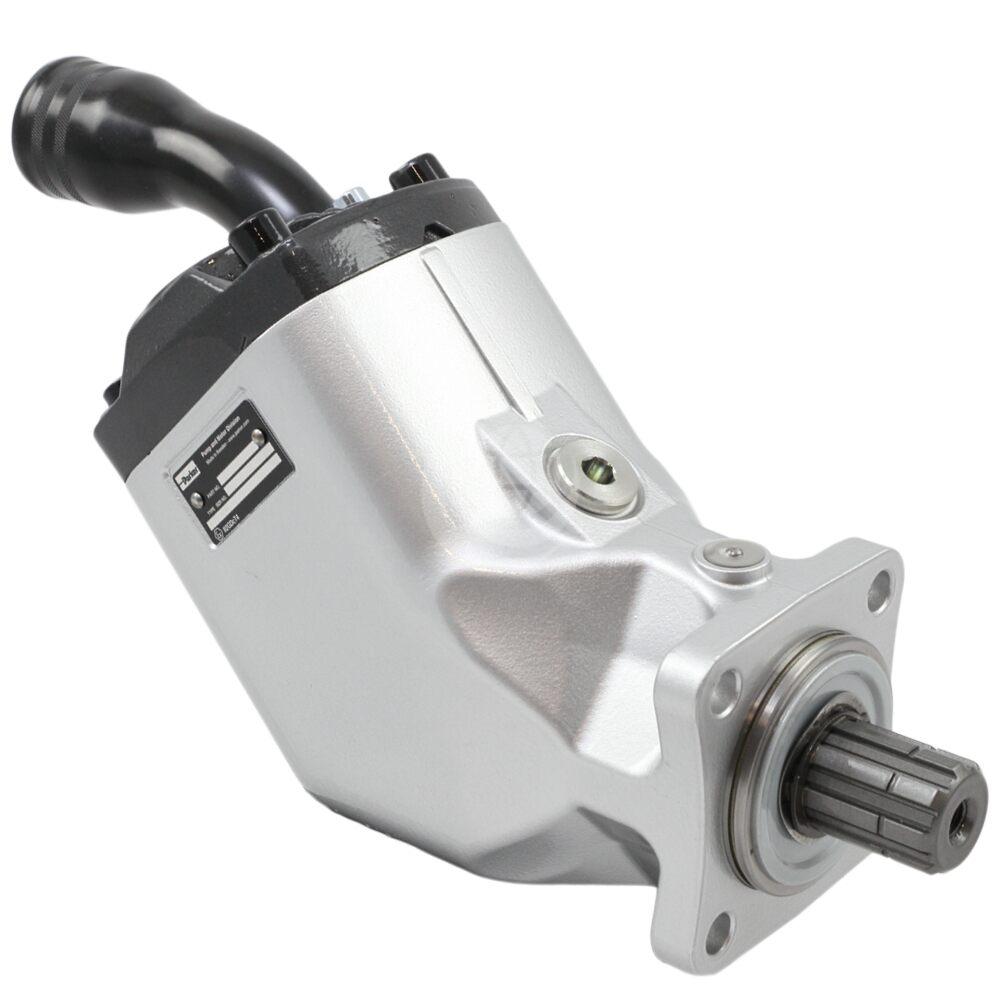

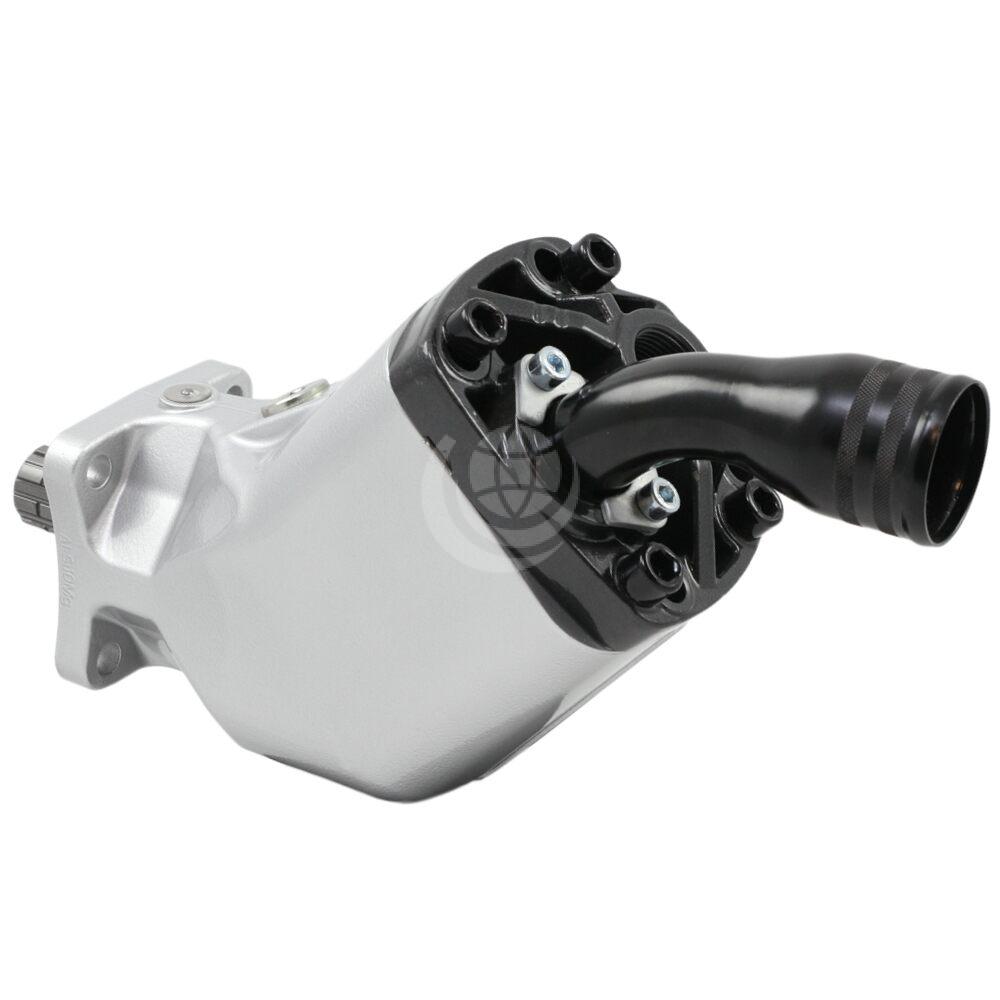

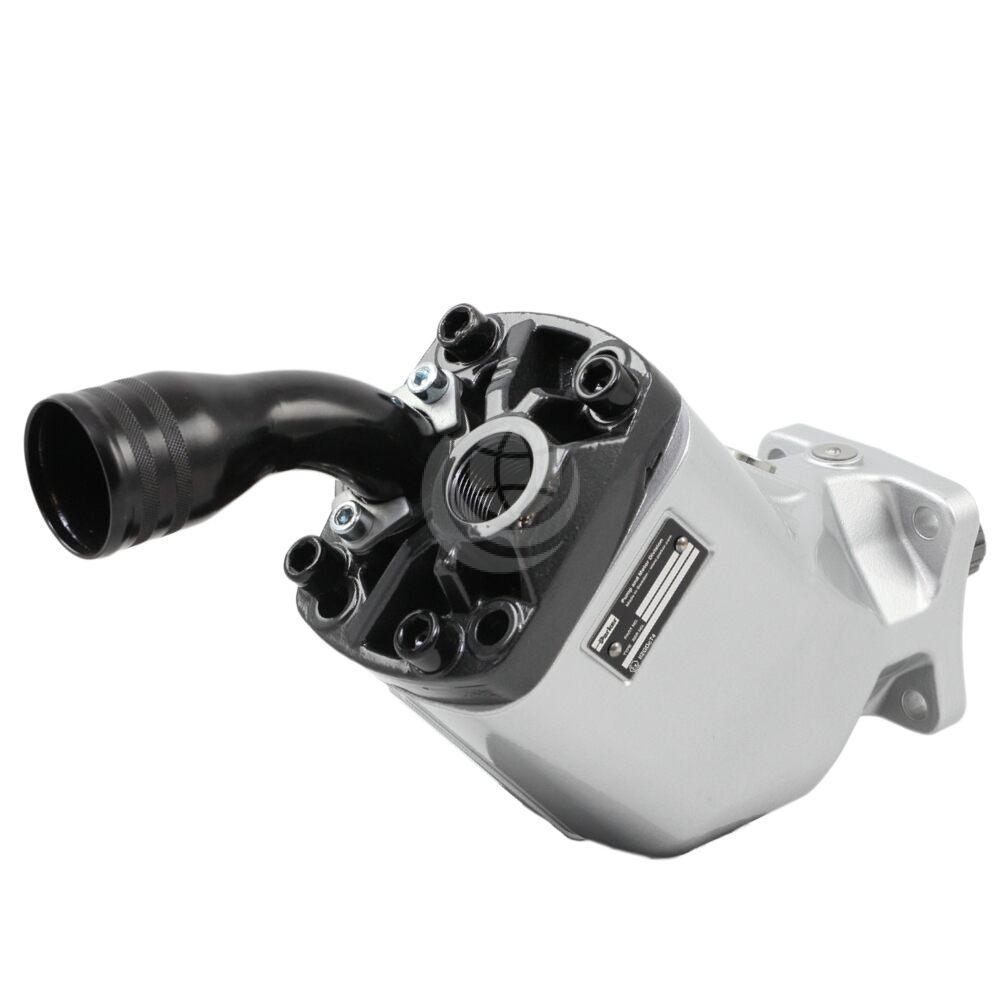

    Parker F1 Motor – Fixed Displacement, Bent Axis

    Parker F1 Motor – Fixed Displacement, Bent Axis

    Description

    The Parker F1 motor series is a fixed displacement axial piston motor within their truck hydraulics range. The F1 offers many additional features for operators of cargo cranes, hook loaders, skip loaders, forest cranes, concrete mixers and similar truck applications.

    They are available in 7 sizes: 26 cc | 41 cc | 51 cc | 60 cc | 82 cc | 103 cc | 119 cc – see the technical data tab for specifications.

    Features and benefits of Parker F1 motor include:

    • efficient, straight-forward design
    • compact design and inexpensive installation
    • low leakage, laminated piston rings
    • positive synchronisation with timing gear
    • operating pressure up to 350 bar (5076 psi)
    • installation above the reservoir level possible
    • tolerates low temperatures and high temperature shocks
    • shaft end and mounting flange meet the SAE standard for all sizes
    • 45° bent-axis angle
    • optimal inlet port geometry in the end cap
    • single housing design
    • spherical pistons – high speeds
    • laminated piston rings – low leakage
    • positive synchronisation with timing gear
    • installation above the reservoir level possible
    • tolerates low temperatures and high temperature shocks

    Contact us for further technical details and configuration options.

    Download the Parker F1 Motor Technical Catalogue >>>

    F1 Motor Frame Size25-M41-M51-M61-M81-M101-M121-M
    Displacement cm³/rev25.640.951.159.581.6102.9118.5
    Maximum operating pressure (bar)
    continuous250250250250250250250
    intermittent350350350350350350350
    Max shaft speed (rpm)
    continuous2300200018001700150014001300
    intermittent3000270024002200200018001700
    Torque (Nm)
    at 200 bar81130162189259327376
    at 350 bar142227284331453572658
    Max output power (kW)4564727695108117
    Weight (kg)8.58.58.58.512.512.512.5
