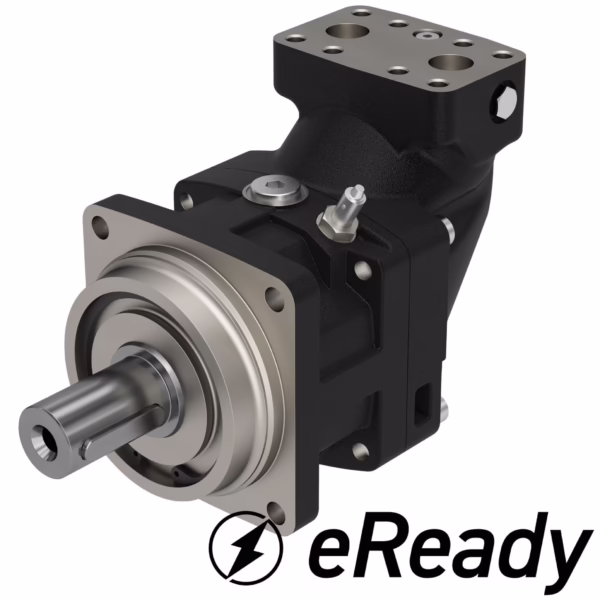

Parker F10 Motor – Fixed Displacement, Bent Axis

The Parker F10 is a fixed displacement, bent axis motor with operating pressures up to 420 bar and speeds up to 14,000 rpm, available in 7 displacements from 30 cc up to 125 cc.

F10 shares the same design concept as the heavy-duty F11 and F12 series, with double tapered bearings and ring gear synchronisation for reliability and durability, and the same patented spherical piston concept for high overall efficiency, up to 95%. It has up to 13% smaller envelope size and 25% lower weight than the equivalent F12 displacement, giving a more compact, cost-optimised option for applications with lower pressure demands than F11 or F12. Available in ISO, SAE and Cartridge versions, with a wide range of shaft, speed sensor and integrated valve options.

Designed for both open and closed circuit transmissions.

Typical applications for the Parker F10 motor include:

• Agricultural and construction machinery
• Material handling equipment
• Mobile equipment with lower pressure demands than F11 or F12 applications
