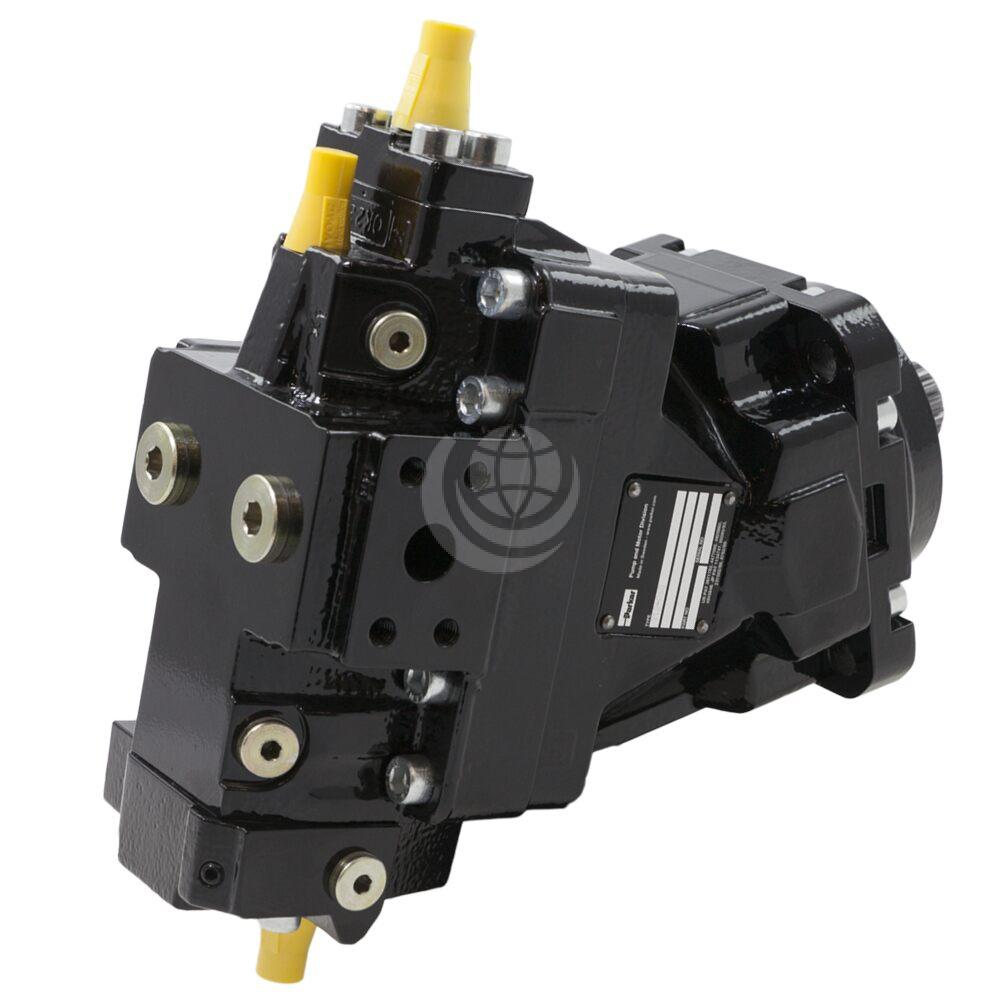

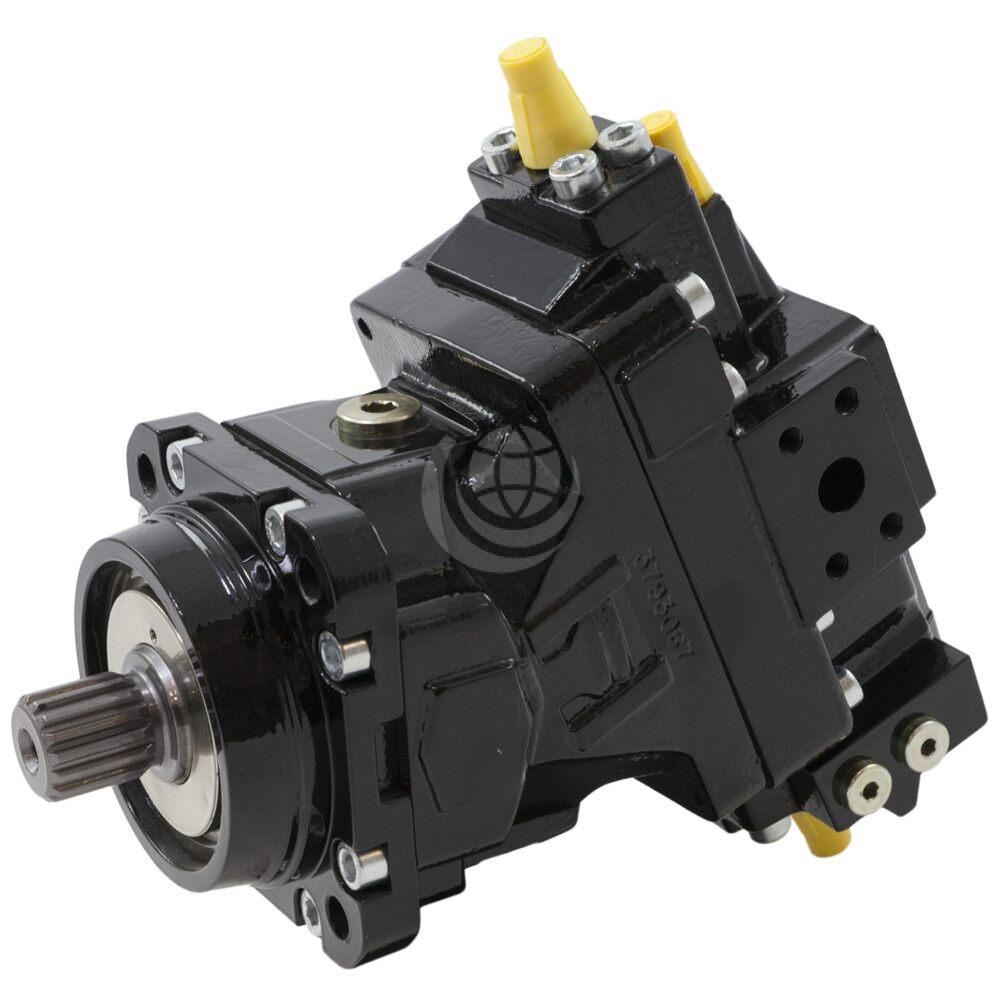

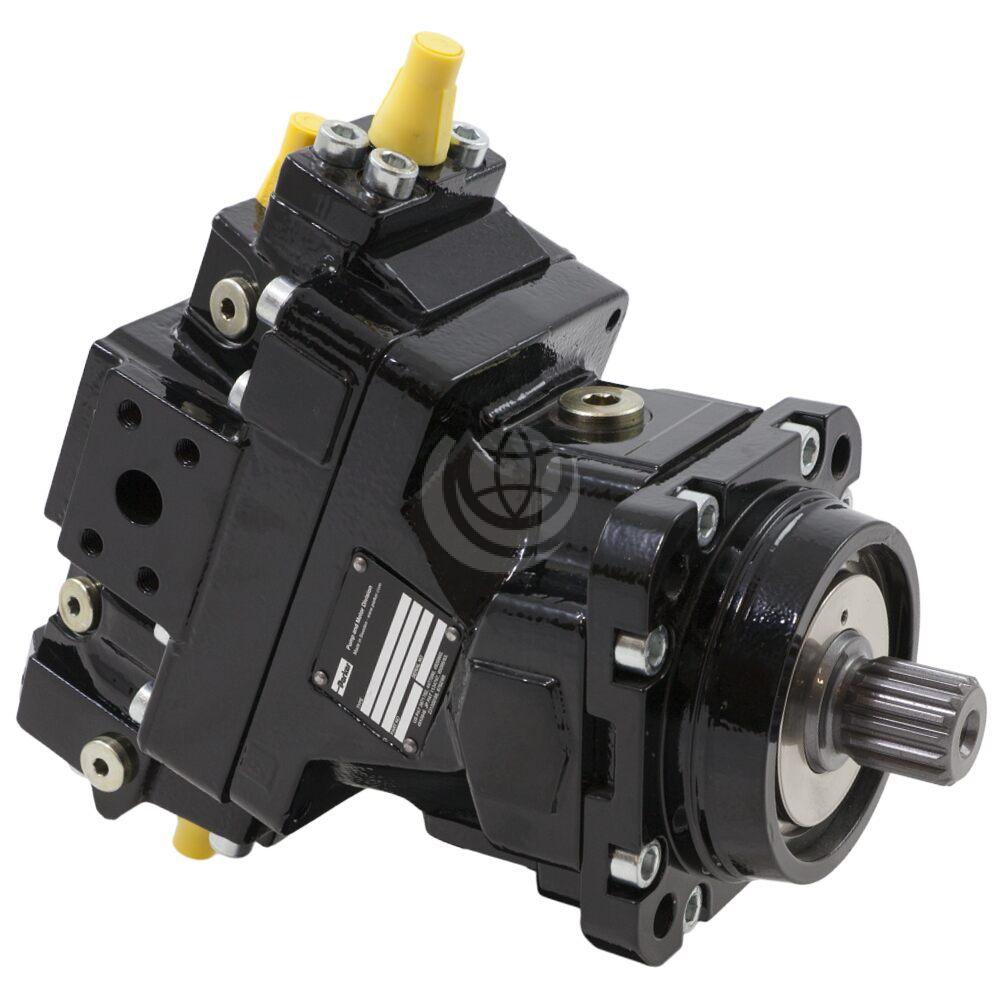

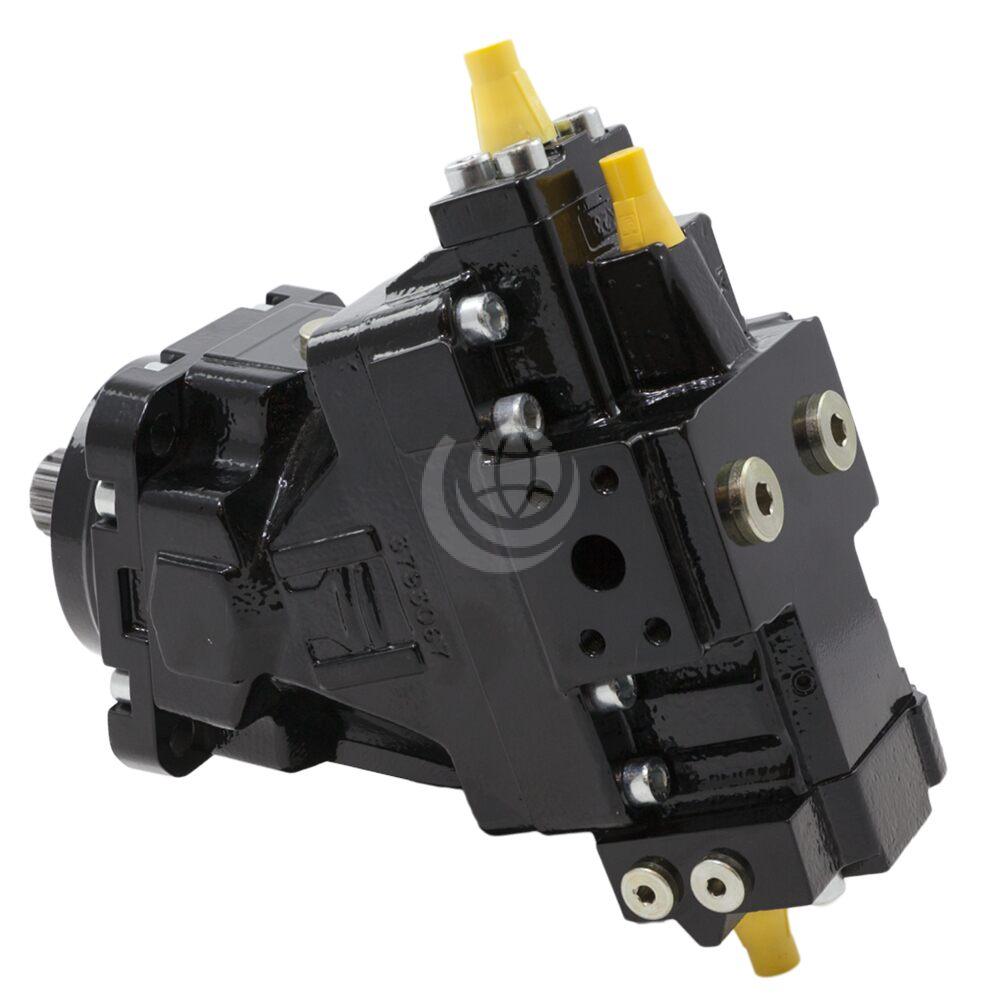

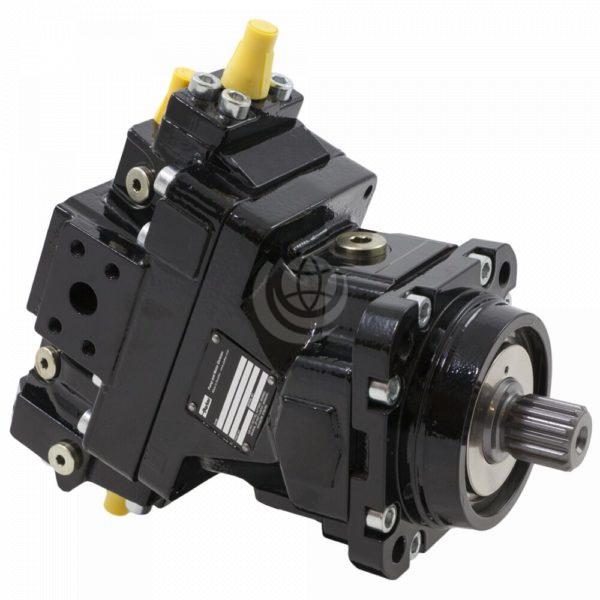

    Parker V12 Motor – Variable Displacement, Small Frame

    Parker V12 Motor – Variable Displacement, Small Frame

    Description

    The Parker V12 is a bent axis, variable displacement motor. The V12 series is available in 2 sizes (60 cc or 80 cc) and has operating pressures up to 480 bar (7,000 psi) and speeds up to 7,900 rpm. Its robust design means it can be used in numerous applications in both open and closed loop circuits.

    Features include:

    • Displacements of 60 cc and 80 cc
    • High operating speeds thanks to low weight pistons
    • Wide displacement ratio (5:1)
    • Broad range of controls for most applications
    • ISO, SAE and cartridge versions
    • High overall efficiency throughout the entire Parker V12 displacement range
    • Nine-piston design provides high start-up torque and smooth operation
    • Compact size and a high power-to-weight ratio
    • Low noise levels due to a very compact and sturdy design with smooth fluid passages
    • Long service life and proven reliability

    Contact us for further technical details and configuration options.

    Download the Parker V12 Technical Catalogue >>>

    V12 frame size6080
    Displacement [cm3/rev]
    at 35° (max)6080
    at 6.5° (min)1216
    Operating pressure [bar]
    max intermittent480480
    max continuous420420
    Operating speed [rpm]
    max intermittent at 35°47004300
    max continuous at 35°41003700
    max intermittent at 6.5 to 20°79007200
    max continuous at 6.5 to 20°69006300
    min continuous5050
    Flow [litres/min]
    max intermittent282344
    max continuous246296
    Output torque [Nm], 100 bar95127
    Output power (kW)170205
    Corner power (kW)
    intermittent380460
    continuous290350
    Weight (kg)2833
