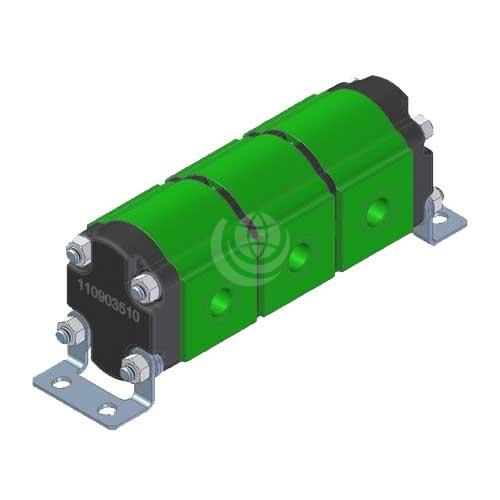

Salami 1.5DRE Flow Divider

The Salami 1.5DRE gear flow dividers are constructed with an aluminium alloy body and cast iron end covers. Moreover, floating bushings and axial compensation enables high volumetric efficiency. The Salami 1.5DRE gear flow divider range comprises model types: 2.8, 3.5, 4.1, 5.2, 6.2, 7.6, 9.3 and 11.

Technical specificatons across the Salami gear flow divider range are as follows:

• displacements: 2.8cm3 /rev to 11 cm3/rev
• maximum outlet pressure at P1: 250 bar / 3600 psi – 170 bar / 2465 psi
• maximum outlet pressure at P2: 270 bar / 3915 psi – 190 bar / 2755 psi
• minium speed of 1200 min-1, maximum speed: 4500 min-1 to 3000 min-1
• minimum flow per section 3.54 – 13.89 litres/minute
• maximum flow per section: 13.26 – 34.74 litres/minute.

Contact us for further technical details and configuration options.
