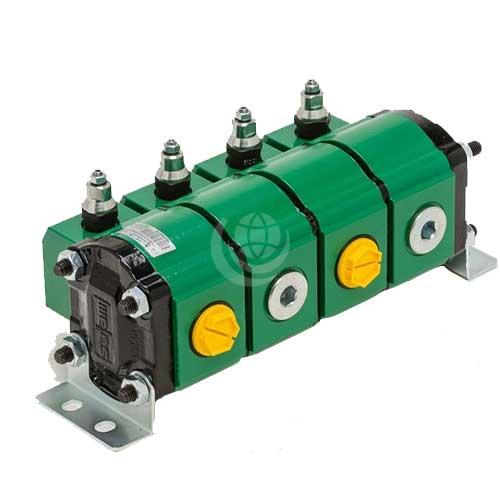

Salami 2DRE Flow Divider

The Salami 2DRE gear flow dividers are constructed with an aluminium alloy body and cast iron end covers. Moreover, floating bushings and axial compensation enables high volumetric efficiency. The Salami 2DRE gear flow divider range comprises model types: 8.3, 10.5, 11.3, 12.5, 13.8, 16, 19, 22.5, 26 and 30.

Technical specifications across the Salami gear flow divider range are as follows:

• displacements: 8.2cm3 /rev to 30.10cm3/rev
• maximum outlet pressure at P1: 250 bar / 3600 psi – 200 bar / 2900 psi
• maximum outlet pressure at P2: 280 bar / 4000 psi – 220 bar / 3150 psi
• minium speed of 1250 min-1 to 1100 min-1
• maximum speed: 3600 min-1 to 2700 min-1
• minimum flow per section 10.36 to 34.85 litres/minute
• maximum flow per section: 31.07 to 85.55 litres/minute

Contact us for further technical details and configuration options.
