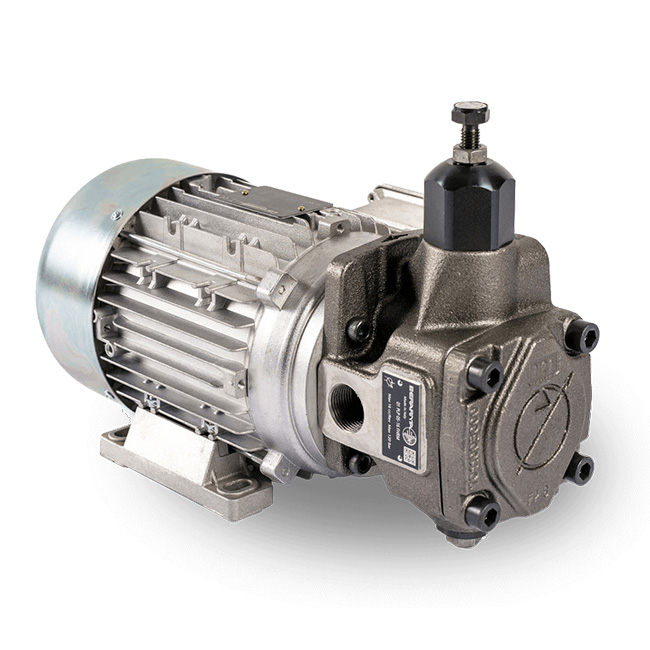

Berarma GMP Motor-Pump Units
Berarma GMP motor-pump units are compact, direct-drive integrated motor-pump units consisting of Berarma pumps and B3-B14 hollow-shaft electric motors.
The direct coupling system allows connective parts between the pump and motor to be eliminated (couplings, bell housing, supports, etc.) and ensures perfect concentricity between the two shafts, avoiding dangerous misalignments which can cause abnormal wear.
GMP motor-pump units are produced using Berarma size 05 and size 1 pumps (displacement up to 32 cm³/r and maximum working pressure up to 250 bar) together with asynchronous three-phase electric motors with special mounting flanges with rated power of 0.75 – 7.5 kW.
The GMP is easy and quick to install and can be mounted directly on the powerpack – anti-vibration mounts are recommended.
- Space-saving
- Coupling and bell-housing elimination
- Rated powers 0.75 – 7.5 kW
- On demand: special voltages, thermal protection
- High operating pressure
- Excellent response times
- Silent running
- High efficiency
- Long working life
- Economy and simplification of hydraulic system
- Modular design
- Energy saving
| Type | Max Displacement [cm³/r] |
Max.Flow Rate [l/min at 1450rpm] |
Max Pressure [bar] |
|---|---|---|---|
| GMP 16 | 16 | 23 | 250 |
| GMP 20 | 20 | 29 | 250 |
| GMP 25 | 25 | 36 | 250 |
| GMP 32 | 32 | 47 | 250 |
Contact Us for further technical details and configuration options.
