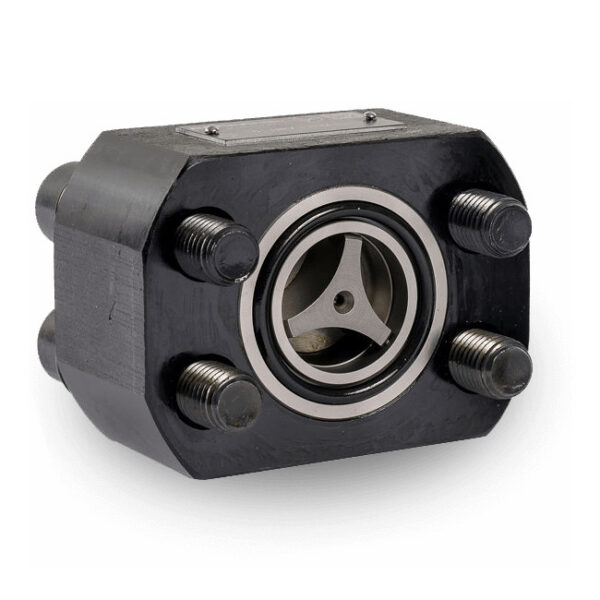

Berarma NRV Valves
Berarma NRV non-return (check) valves are produced in SAE J518 3000 and 6000 series configurations with BSP-threaded ports.
By integrating the valve and flange into a single body, with a port connection for circuit pressure reading, these valves simplify installation, reduce component count and lower overall system cost.
Designed for use with Berarma size 2 and size 3 pumps (3000 series only), their modular construction also allows installation on any SAE J518 configured system with 1″ BSP thread (NRV 2) or 1¼” BSP thread (NRV 3).
Features and benefits include:
- Extremely compact dimensions
- Integrated pressure gauge connection
- High operating pressure rating
- Long service life
- Simplified hydraulic circuit design
- Modular and adaptable configuration
| Type | Size | Max. flow rate [l/min) |
Max pressure [bar] |
|---|---|---|---|
| 01 NRV 2 L | 1” SAE J518 3000 series DN25 | 250 | 300 |
| 01 NRV 3 L | 1”1/4 SAE J518 3000 series DN32 | 350 | 300 |
| 01 NRV 2 H | 1” SAE J518 6000 series DN25 | 250 | 420 |
| 01 NRV 3 H | 1”1/4 SAE J518 6000 series DN32 | 350 | 420 |
Contact Us for further technical details and configuration options.
