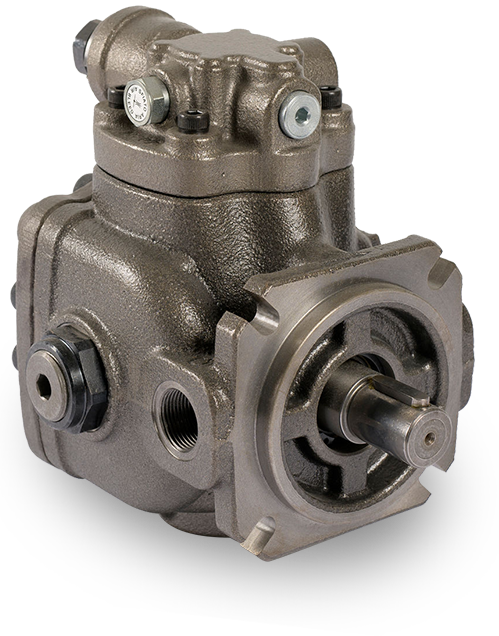

Berarma PHP Pumps
Berarma PHP pumps are high-pressure variable displacement vane pumps equipped with a hydraulic pressure-regulating device that allows you to instantly adjust the flow rate according to circuit requirements.
These variable displacement vane pumps deliver a maximum flow rate equivalent to their displacement for their speed of rotation. Operating pressure is due to pressure loads encountered by the fluid within the system.
When this value is achieved, the pump reduces its flow rate to zero, keeping the pressure almost constant. In zero flow conditions, the pump delivers oil only to compensate for any possible drain and piloting.
Key features and benefits include:
- Various pressure and flow rate controls
- Maximum displacement limiter included
- Displacements range from 16 cm³/r to 250 cm³/r
- Maximum operating pressure: 250 bar
- Arrangement for combined pumps available
- High operating pressure
- Excellent response times
- Silent running
- High efficiency
- Long working life
- Economy and simplification of hydraulic system
- Modular design
- Energy saving
Contact Us for further technical details and configuration options.
