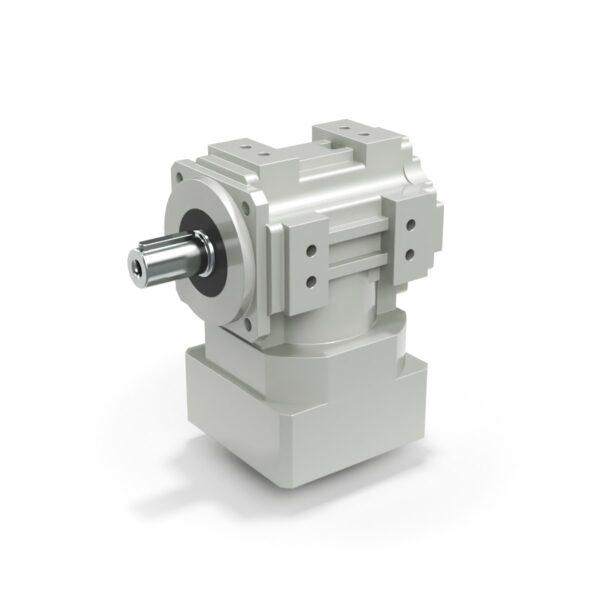

Bonfiglioli Right-Angle Planetary Gearboxes

Bonfiglioli Right-Angle Planetary Gearboxes

Description

The KR, LCK, and TQK series of Bonfiglioli precision planetary right-angle gearboxes are reliable and cost-effective solutions designed for machines that require a very compact layout. These gearboxes offer great flexibility and compatibility with different configurations and output designs. They are suitable for various applications, including servo systems, where fast dynamic response, frequent reverse motion, and precise position and motion control are required.

KR precision planetary right angle gearbox:

  • The reduced backlash bevel helical drives of the KR series yield the best possible combination of precision, dynamics and compactness at unbeatable price. Numerous input and output configurations, as well as more transmission ratios, lend the product an unparalleled flexibility of use. It is available in multiple configurations such as solid/hollow shaft, single/double shaft extension, shrink disk version or flange option.

LCK precision planetary right-angle gearbox:

  • This model represents a flexible, reliable and cost-effective solution for machines that require a very compact layout. The output design in line with market standards ensures great compatibility for easy retrofits and a high level of freedom in projects development.

TQK precision planetary right-angle gearbox:

  • This series represents the ideal solution for issues of space saving, while maintaining the same top performance levels of the TQ inline series. This series is particularly suited for the highly demanding requirements of servo systems, such as fast dynamic response, frequent reverse motion, precise position, motion control and high number of starts and stops.

TR precision planetary right-angle gearbox:

  • In addition to optimal performance, very low backlash, high overload capacity and easy installation, the TR series is characterized by great modularity due to multiple design configurations, wide ratios range, two backlash classes and different optimized lubrications, ensuring high reliability and the most fitting response to different applications requirements.

Contact us now for technical advice and configuration options. If you cannot see the Bonfiglioli right-angle planetary gearboxes you need – we’ll still be able to help.

KR Right-Angle Planetary Gearbox

Key Features:

  • Highest installation flexibility
  • Optional reinforced bearings for high axial and radial overload forces
  • Designed for continuous duty and intermittence duty
  • Compact design for space-saving
  • Great flexibility thanks to universal design

Technical details:

  • Torque: 3 – 120 Nm
  • Gear ratios: 1 stage: ratio 1; 2; 5
  • Input speed: up to 5,000 rpm
  • Frame sizes: 010, 020, 030, 040
  • Torsional stiffness: 0.5 – 11 Nm/arcmin

LCK Right-Angle Planetary Gearbox

Key Features:

  • Highest installation flexibility
  • Designed for continuous duty and intermittence duty
  • Quiet operation
  • Compact design for space-saving
  • High compatibility for easy retrofits
  • Smooth keyless or keyed shaft

Technical details:

  • Torque: 10 – 450 Nm
  • Gear ratios: 2 stage: 6 – 20 and 3 stages: 24 – 100
  • Input speed: up to 5,000 rpm
  • Frame sizes:050, 070, 070P, 090, 090P, 120, 120P, 155, 155P
  • Torsional stiffness: 0.9 – 47.9 Nm/arcmin

TQK Right-Angle Planetary Gearbox

Key Features:

  • Highest installation flexibility
  • Optional reinforced bearings for high axial and radial overload forces
  • Designed for continuous duty and intermittence duty
  • Quiet operation
  • Compact design for space-saving
  • Great flexibility thanks to universal design

Technical details:

  • Torque: 12 – 1000 Nm
  • Gear ratios: 1 stage: 3 – 10 and 2 stages: 16 – 100
  • Input speed: up to 6,000 rpm
  • Frame sizes: 060, 070, 090, 130, 160
  • Torsional stiffness: 1 – 130 Nm/arcmin

TRK Right-Angle Planetary Gearbox:

Key features

  • 7 sizes available with a wide torque range

Technical details:

  • Torque: 12 – 1000 Nm
  • Gear ratios: 3 – 1000
  • Input speed: up to 6,000 rpm
  • Frame sizes: 053, 060, 080, 105, 130, 160, 190
  • Torsional stiffness: 1 – 130 Nm/arcmin
