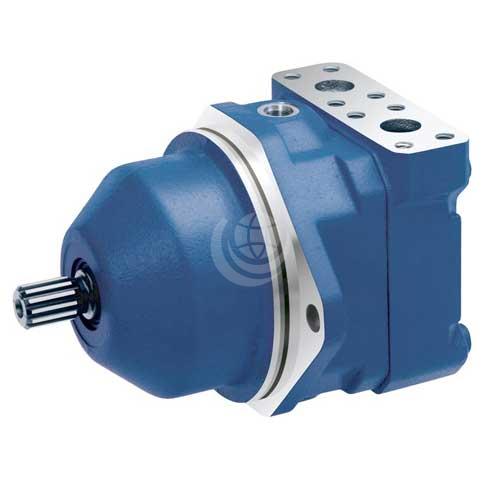

Bosch Rexroth A10FE Axial Piston Motor – Series 52

Bosch Rexroth A10FE motor is a medium pressure, axial piston motor for integration in mechanical gearboxes. It is suitable for both open and closed circuits.

The motor’s output speed is proportional to the inlet flow. Output torque increases with the pressure differential between the high and low pressure sides.

The A10FE series 52 motor is available in displacement sizes: 10 | 11 | 14 | 16 | 18| 23 | 28 | 37 | 45 | 58 | 63 cc/rev. Nominal pressure is 280 bar; maximum pressure is 350 bar.

Other features of the Bosch Rexroth A10FE motor include:

• Space-saving construction due to recessed mounting flange;
• Approved for high speeds;
• Long service life;
• High power density;
• Low operating noise;
• Optional integrated anti-cavitation valve, e.g. for fan drives;
• Optional speed sensor;
• Swashplate design.
