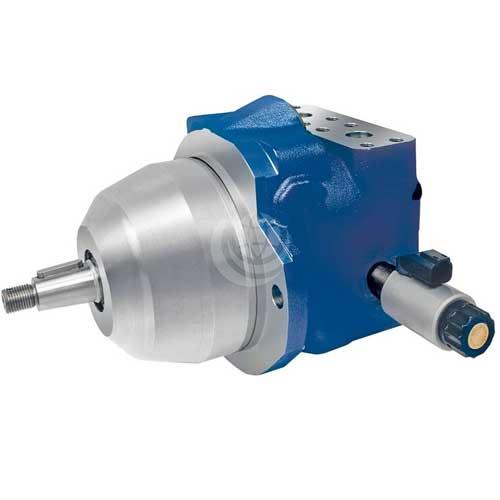

Bosch Rexroth A10VER Axial Piston Motor


The Bosch Rexroth A10VER motor (series 52) is a reversible, variable displacement motor with an axial piston rotary group. It has a swashplate design and is for use in hydrostatic fan drives in open circuits.

The A10VER variable motor is equipped with an overcentre rotary group with a maximum displacement of +/-100% Vg max. This allows reversing operation without the need for costly additional components to reverse the air flow and to clean the cooler from contamination; the energy efficiency of hydraulic fan drives is increased due to the elimination of external reversing valves.

This motor is available in the following displacement sizes: 18 | 23 | 28 | 37 | 45 cc/rev. Nominal pressure is 280 bar, maximum pressure is 350 bar. Output speed is proportional to the inlet flow.  The output torque increases proportionally with the pressure difference between the high- and low-pressure sides and increasing displacement

Other features of the Bosch Rexroth A10VER include:

  • Stable bearing for long service life;
  • High maximum permissible output speed;
  • Favourable power-to-weight ratio;
  • Compact dimensions;
  • Low noise.

Download the Bosch Rexroth A10VER Technical Catalogue >>>

Contact us for further technical details and configuration options.
