Bosch Rexroth A2FE Series 70 Axial Piston Motor

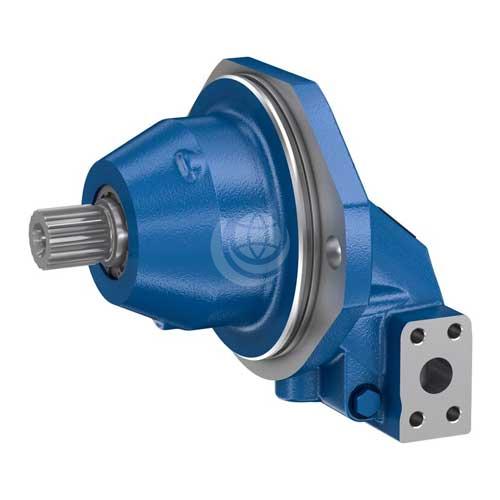

The Bosch Rexroth A2FE series 70 motor is a compact, fixed displacement, bent-axis, axial piston motor. It integrates in to mechanical gearboxes in open and closed circuits in mobile and stationary applications.

The A2FE series 70 motor is available in 3 pressure ranges:

  • A2FEN (sizes 28 to 107) – nominal pressure 300 bar, maximum pressure 350 bar;
  • A2FEM (sizes 23 to 125) – nominal pressure 400 bar, maximum pressure 450 bar;
  • A2FEH (sizes 45 to 125) – nominal pressure 450 bar, maximum pressure 500 bar.

Other features of the motor include:

  • Compact high pressure motor for integration in mechanical gearboxes;
  • Space-saving construction due to recessed mounting flange;
  • Very high power density;
  • Very high total efficiency;
  • High starting efficiency;
  • Optional with integrated flushing valve;
  • Robust 40° bent-axis technology.

Contact us for further technical details and configuration options.

Download the Bosch Rexroth A2FE Series 70 Technical Catalogue >>>
