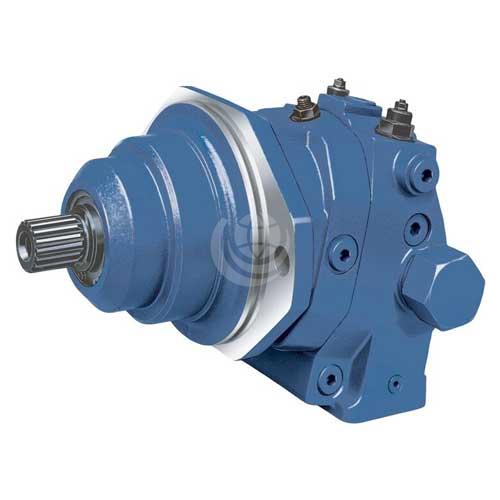

    Bosch Rexroth A6VE Series 6x Axial Piston Motor

    Bosch Rexroth A6VE Series 6x Axial Piston Motor

    Description

    Bosch Rexroth A6VE Series 6x (series 63 and 65) motors are high pressure, axial piston motors for integration in mechanical gearboxes. They are approved for very high speeds, provide high torque and have a bent axis design.

    The A6VE Series 63 motor is available in:

    • 28 | 55 | 80 | 107 | 160 cc/rev  with nominal pressure of 400 bar and maximum pressure of 450 bar
    • 250 cc/rev with nominal pressure of 350 bar and maximum pressure of 400 bar

    The A6VE Series 65 motor is available in the following displacement sizes:  55 | 80 | 107 | 160 | 200 cc/rev.  Nominal pressure is up to 400 bar and maximum pressure is 450 bar.

    Other features of teh Bosch Rexroth A6VE series 6x motors include:

    • For use in open and closed circuits;
    • Space-saving construction due to recessed mounting flange;
    • Easy to install, simply slide into the mechanical gearbox;
    • Wide control range (can be swiveled to zero);
    • Optional attached flushing and boost-pressure valve;
    • Optional integrated or attached counterbalance valve.

    Download the:

    A6VE Series 63 Technical Catalogue >>>

    A6VE Series 65 Technical Catalogue >>>

    Contact us for further technical details and configuration options.
