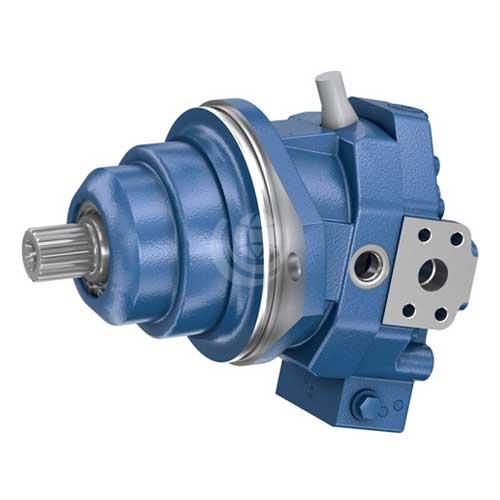

Bosch Rexroth A6VE Series 71 Axial Piston Motor


The Bosch Rexroth A6VE Series 71 motor is a variable, high pressure motor for integration in mechanical gearboxes. It has a bent axis design and can be used in open and closed circuits.

This motor is available in displacement sizes: 60 | 85 | 115 | 170 | 215 cc/rev. Nominal pressure is 450 bar, maximum pressure is 500 bar.

Other features of the Bosch Rexroth A6VE Series 71 motor include:

  • Space-saving construction due to recessed mounting flange;
  • Easy to install, simply slide into the mechanical gearbox;
  • Approved for very high speeds;
  • High starting efficiency;
  • Excellent slow-running characteristics;
  • Wide control range (can be swiveled to zero)
  • High torque;
  • Optional attached flushing and boost-pressure valve;
  • Optional integrated or attached counterbalance valve.

Download the A6VE Series 71 Technical Catalogue >>>

Contact us for further technical details and configuration options.
