    Bosch Rexroth MCR-F Radial Piston Motor

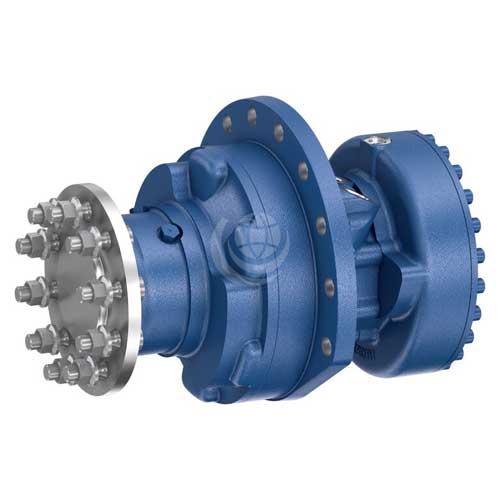

    Bosch Rexroth MCR-F Radial Piston Motor


    Bosch Rexroth MCR-F radial piston motors have a rear case mounting and flange shaft. These motors are intended for wheel drives in open or closed circuits. Common applications include: municipal vehicles, fork-lift trucks, agricultural and forestry machines. The integrated flange with wheel studs allows easy installation of standard wheel rims.

    Bosch Rexroth MCR-F motors come in frame sizes: MCR3F | MCR5F | MCR10F | MCR15F | MCR20F (see MCR20-C).

    Displacements range from 160 cc/rev.  to 2150 cc/rev. Differential pressure is up to 450 bar, torque output is up to 13687 Nm and speeds are up to 875 rpm. See the “Technical Data” tab for more details.

    Other features of the Bosch Rexroth MCR-F motor include:

    • Smooth running at very low speeds;
    • High volumetric and mechanical efficiencies;
    • Bi-directional;
    • Wheel flange with wheel studs;
    • Available with parking brake (multi-disc) or dynamic brake (drum);
    • Available with bi-directional two-speed function;
    • High radial forces permitted on drive shaft;
    • Compact robust construction;
    • Free-wheeling possible;
    • Sealed tapered roller bearings;
    • High reliability;
    • Low maintenance;
    • Low operating noise.

    Contact us for further technical details and configuration options.

    Download the Bosch Rexroth MCR-F Technical Catalogue >>>
