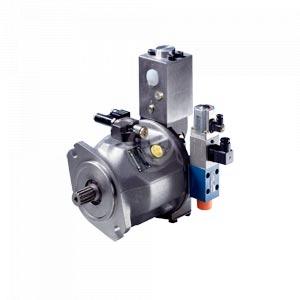

    Bosch Rexroth Pressure and Flow Control System – SYDFE1-2X

    Bosch Rexroth Pressure and Flow Control System – SYDFE1-2X

    Bosch Rexroth Pressure and Flow Control System – SYDFE1-2X

    • Description

    Description

    Compatible with the A10VSO series 31 axial piston variable displacement pump, the SYDFE1-2X pressure and flow control system is designed with an optional preload valve, controllable from 1 bar.

    Other features of the pressure and flow control system include:

    • Nominal pressure 280 bar;
    • Size 18…140;
    • Maximum flow 210 l/min;
    • Control electronics VT 5041-3X;
    • Controller variants: swivel angle, pressure control and power (optional);
    • Command/actual values: Voltage / current;
    • Ambient temperature range -20 °C … +70 °C.

    Contact us for further technical details and configuration options.

    Click here for more information on the Bosch Rexroth hydraulic product portfolio.
