Description

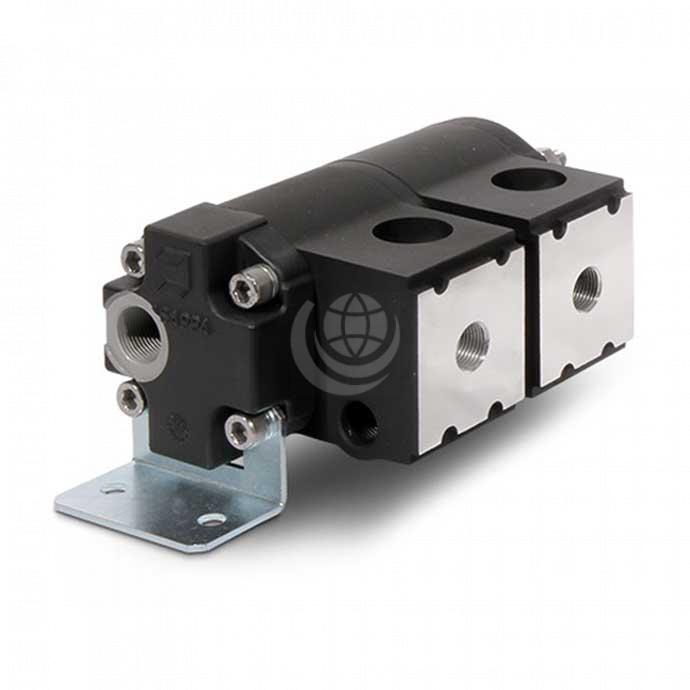

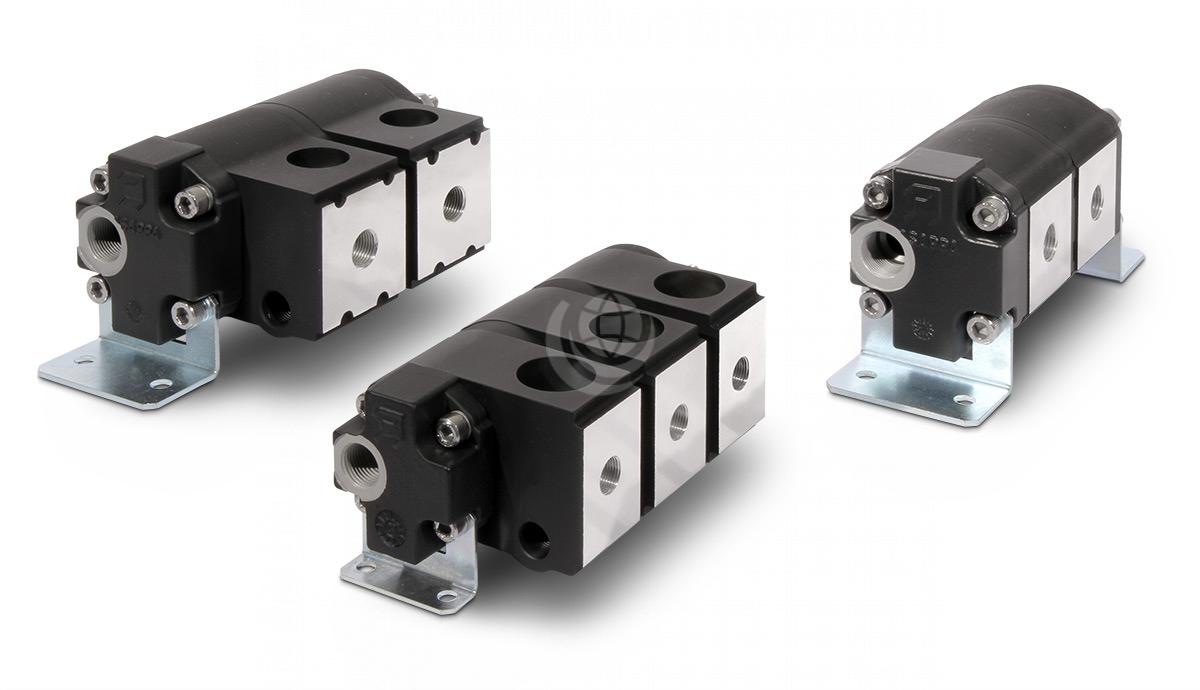

Casappa Polaris PLD series flow dividers are made of high resistance aluminium alloy and can be used as flow equalisers, flow dividers and pressure intensifiers.

These flow dividers have displacements ranging from 0.13 in³/rev (2.14 cm³/rev) to 2.01 in³/rev (33.03 cm³/rev) and are available in groups 10 and 20.

Maximum peak pressure up to 4060 psi (280 bar)
Modular design
Accurate division of flow
Built-in relief valves
Combinations between different groups

Contact us for further technical details and configuration options.

CASAPPA POLARIS PLD

Model Series	Displacement cm³/rev	Max Outlet Pressure p1	Max Outlet Pressure p2	Max Speed min -1	Min Speed min -1	Max Flow l/min	Min Flow l/min

PLD 10.2	2	3600 PSI	4000 PSI	4200	1250	8.9	2.65
PLD 10.3,15	3.1	3600 PSI	4000 PSI	3990	1205	13.2	3.99
PLD 10.4	4	3600 PSI	4000 PSI	3840	175	16.2	4.98
PLD 10.5	4.9	3600 PSI	4000 PSI	3680	1140	19.5	6.04
PLD 10.6,3	6.2	3600 PSI	4000 PSI	3500	1100	23.2	7.29
PLD 20.4	4.8	3600 PSI	4000 PSI	4100	1250	20.2	6.16
PLD 20.6,3	6.5	3600 PSI	4000 PSI	3970	1235	26.1	8.12
PLD 20.8	8.3	3600 PSI	4000 PSI	3850	1220	31.65	10.05
PLD 20.11,2	11.1	3600 PSI	4000 PSI	3660	1200	40.85	13.42
PLD 20.14	14.4	3600 PSI	4000 PSI	3460	1175	50.02	17.03
PLD 20.16	16.6	3000 PSI	3300 PSI	3335	1160	55.88	19.47
PLD 20.20	20.8	3000 PSI	3300 PSI	3125	1130	65.7	23.83
PLD 20.25	26	3000 PSI	3300 PSI	2900	1100	76.21	28.9
PLD 20.31,5	32.6	3000 PSI	3300 PSI	2660	1060	87.39	34.84
