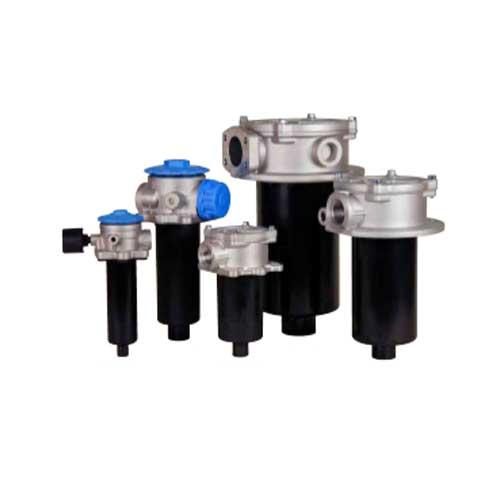

Donaldson FIK In-Tank Filters


Donaldson FIK filters are economical, space-saving filters with aluminum or plastic access covers, mounting options, and breathers. They are designed to handle heavy-duty applications including: cooling circuits, fluid conditioning systems, lube oil systems, process systems, return lines and side loop systems.

FIK filters, feature a die-cast aluminum head and a steel or plastic canister. The head (and the inlet) sit above the tank, while the housing remains inside the tank, offering design-in flexibility.

There are three service indicators to choose from: pressure gauge, visual indicator and electrical indicator. FIK filters have cellulose or Synteq™ synthetic filter media as standard. Replacement cartridges are offered in a range of media types and performance ratings.

Maximum working pressures go to 10 bar (145 psi) and rated static burst to 15 bar (217 psi). Their flow range is to 644 litres/minute and operating temperature range is -20°C to 90°C (-4°F to 194°F). Standard bypass rating is 1.5 bar (22 psi).

Download the Donaldson FIK Technical Catalogue >>>

Contact us for further technical details and configuration options.
