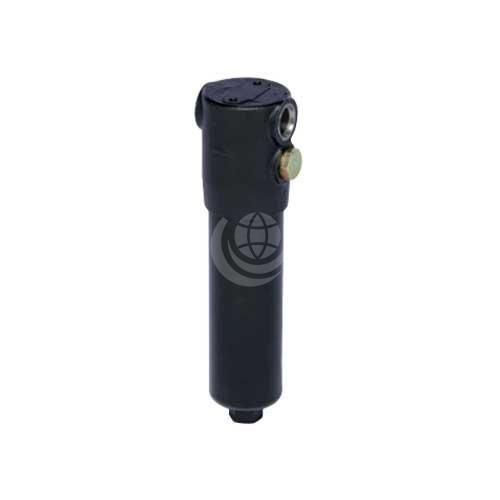

Donaldson FPK02 In-Line Cartridge Filters


Donaldson FPK02 filters are in-line cartridge filters for high pressure circuits. They have a cast iron head and cold-extruded steel housing for ultimate strength and durability.

FPK02 filters are suitable for: in-plant systems, mobile equipment, power steering circuits and servo valve circuits.

Maximum working pressures go to 420 bar (6090 psi) and rated static burst to 630 bar (9135 psi). Their flow range is to 95 litres/minute and operating temperature range is -29°C to 120°C (-20°F to 250°F).

Bypass options include 6 bar (87 psi) bypass, bypass with reverse-flow check valve, or no bypass.

All FPK02 filters contain Synteq™, Donaldson’s exclusive synthetic fibre media formulated especially for hydraulic filtration.

Download the Donaldson FPK02 Technical Catalogue >>>

Contact us for further technical details and configuration options.
