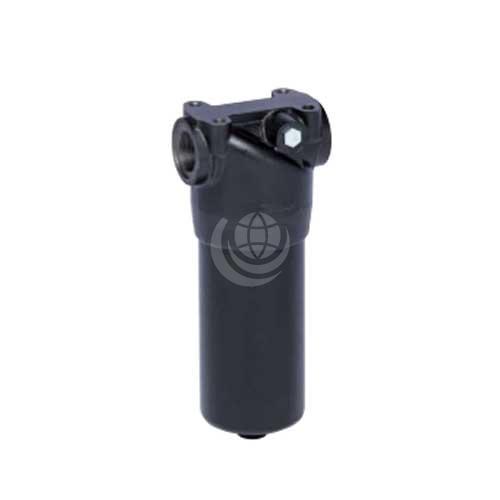

Donaldson FPK04 In-Line Cartridge Filters


Donaldson FPK04 filters are in-line T-type ported cartridge filters with a bypass option. They are suitable for high pressure circuits, in-plant systems, mobile equipment and servo valve circuits.

FPK04 filters have a cast iron head, and steel housing with three housing length options available.

Maximum working pressures go to 300 bar (4350 psi) and rated static burst to 630 bar (9135 psi). Their flow range is to 379 litres/minute and operating temperature range is -20°C to 120°C (-4°F to 248°F).

Standard bypass ratings are either 6.0 bar (87 psi) or no bypass. Nitrile seals come as standard; fluorocarbon seals are available.

Download the Donaldson FPK04 Technical Catalogue >>>

Contact us for further technical details and configuration options.
