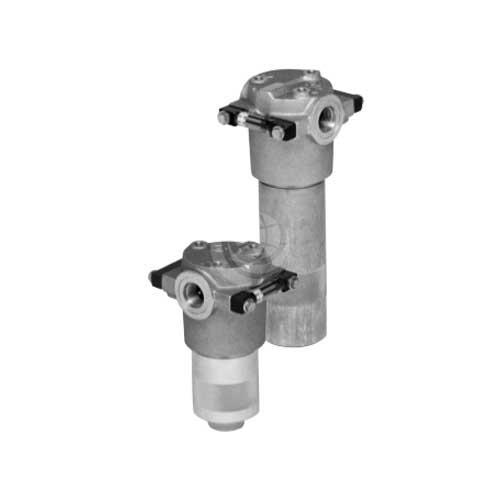

Donaldson HPK02 In-Line Cartridge Filters

Donaldson HPK02 filters are heavy duty in-line cartridge filters suitable for high pressure circuits. They have a cast aluminium head and an impact-extruded aluminium housing for strength and durability at relatively lightweight.

These filters have a choice of visual or AC/DC electrical indicators and fluorocarbon or nitrile seals. Likewise bypass options are 3.5 bar (50 psi) or no bypass.

HPK02 filters are suitable for: in-plant systems, mobile equipment, power steering circuits and servo valve circuits.

Maximum working pressures go to 137.9 bar (2000 psi) and rated static burst to 310.3 bar (4500 psi). Their flow range is to 76 litres/minute and operating temperature range is -43°C to 121°C (-45°F to 250°F).

Download the Donaldson HPK02 Technical Catalogue >>>

Contact us for further technical details and configuration options.
