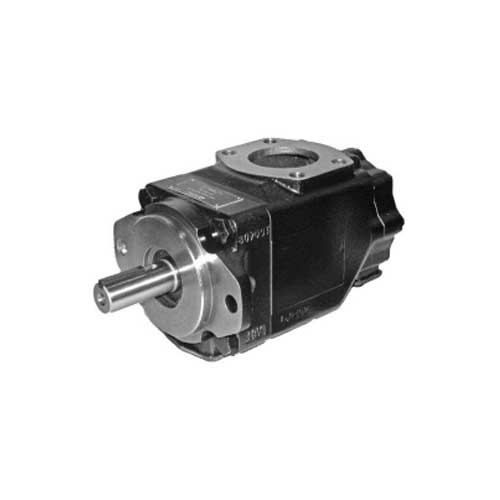

Duplomatic FV6 Vane Pumps

Duplomatic FV6 pumps are fixed displacement vane pumps, with several nominal displacements. Single, double and triple pumps are available.

Single pumps are available in 3 sizes: FV6C from 10.8 to 100 cc/rev | FV6D from 47.6 to 158 cc/rev | FV6E from 132.3 to 269 cc/rev.

Flows at 1500 rpm range from 16.2 to 403 litres/minute. Operating pressure ranges from 210 to 240 bar, with maximum speeds from 2200 to 2800 rpm.

The pumping group is composed of a cartridge element that contains rotor, vanes, cam ring and support plates. The cartridge is easily removable without disconnecting the pump from the hydraulic circuit, thus  simplifying maintenance.

The cam ring’s elliptical profile, with double suction and delivery chambers one against the other, eliminates the radial thrusts on the rotor. This reduces wear of the pump. The 10- vane rotor reduces the delivery pressure pulsations, suppressing the vibrations and noise level of the pump.
