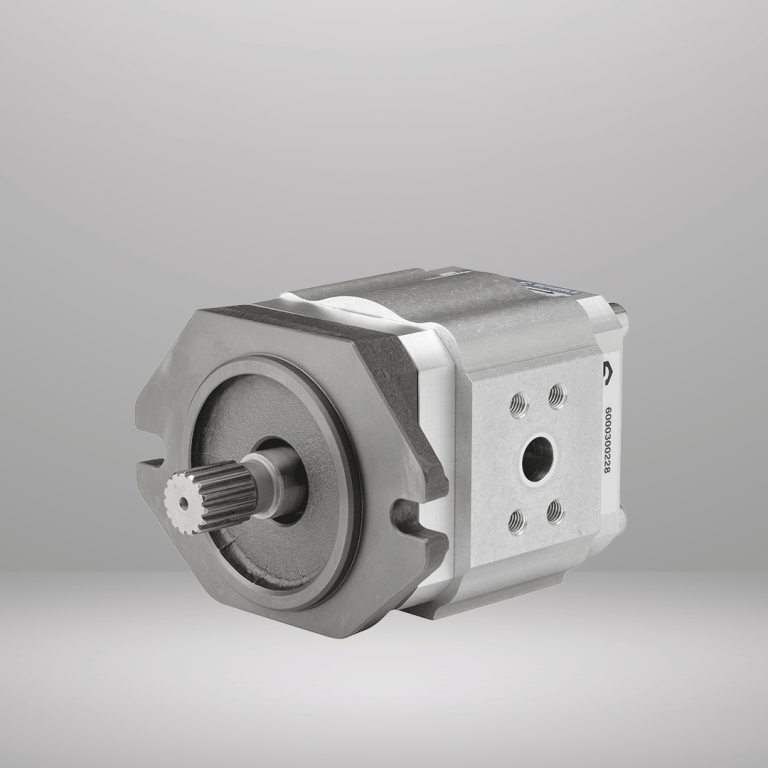

Eckerle EIPC High Pressure Internal Gear Pump
The EIPC internal gear high-pressure pump from Eckerle is a top choice for demanding applications in injection molding machine technology and speed-controlled stationary hydraulics. This pump offers exceptional performance at continuous pressures up to 250 bar and is optimally designed for cost optimisation. With an excellent price-performance ratio, a long service life and quiet operation, the Eckerle EIPC pump is a great solution for your needs.
Main features of EIPC internal gear high-pressure pumps:
- Internal gear pump with axial and radial gap compensation
- Radial compensation with segments
- Suction and pressure side radial
- Noise poverty
- Long service life
- Low pulsation (pressure pulsation ~2 %)
- Multi-current combinations
The Eckerle EIPC product catalogue comprises models: EIPC3 | EIPC5 | EIPC6 with key technical details across each as follows:
EIPC3:
- Maximum displacement: 20 – 65.3 cm³/rev
- Continuous operating pressure: 250 bar
- Peak operating pressure: 270 – 300 bar (10 seconds/15% duty cycle)
- Maximum speed: 1800 – 3900 rpm
EIPC5:
- Maximum displacement: 40.2 – 100.5 cm³/rev
- Continuous operating pressure: 180 – 250 bar
- Peak operating pressure: 210 – 320 bar (10 seconds/15% duty cycle)
- Maximum speed: 3000 – 3600 rpm
EIPC6:
- Maximum displacement: 125.7 – 249.9 cm³/rev
- Continuous operating pressure: 140 – 250 bar
- Peak operating pressure: 150 – 280 bar (10 seconds/15% duty cycle)
- Maximum speed: 2200 – 2800 rpm
For more specific product details, please see the technical data catalogues attached below.
