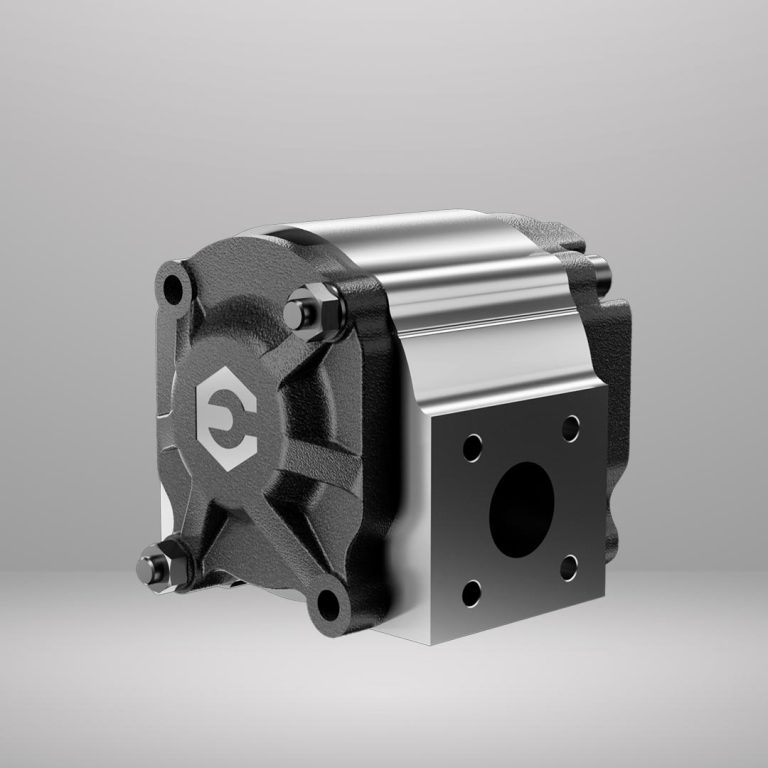

Eckerle EIPG Internal Gear Pump
The Eckerle EIPG series is a further development of their internal gear systems and was specially developed for the demanding requirements of mobile hydraulics. These pumps are the result of decades of experience and offer outstanding performance even at small flow rates. The EIPG series can also be used in agricultural technology.
Main features of the EIPG2 internal gear pumps are as follows:
- Internal gear pump with axial and radial gap compensation
- Radial compensation with segments
- Suction and pressure side radial
- Direct mounting and SAE flange
- Improved noise behavior for maximum quiet operation
- Long service life
- Low pulsation (pressure pulsation ~2 %)
Key technical details of the Eckerle EIPG2 are as follows:
- Maximum displacement: 7.8 – 24.8 cm³/rev
- Continuous operating pressure: 250 bar
- Peak operating pressure: 280 – 320 bar (10 seconds/15% duty cycle)
- Maximum speed: 3600 – 4000 rpm
Contact Us for further technical details and configuration options.
