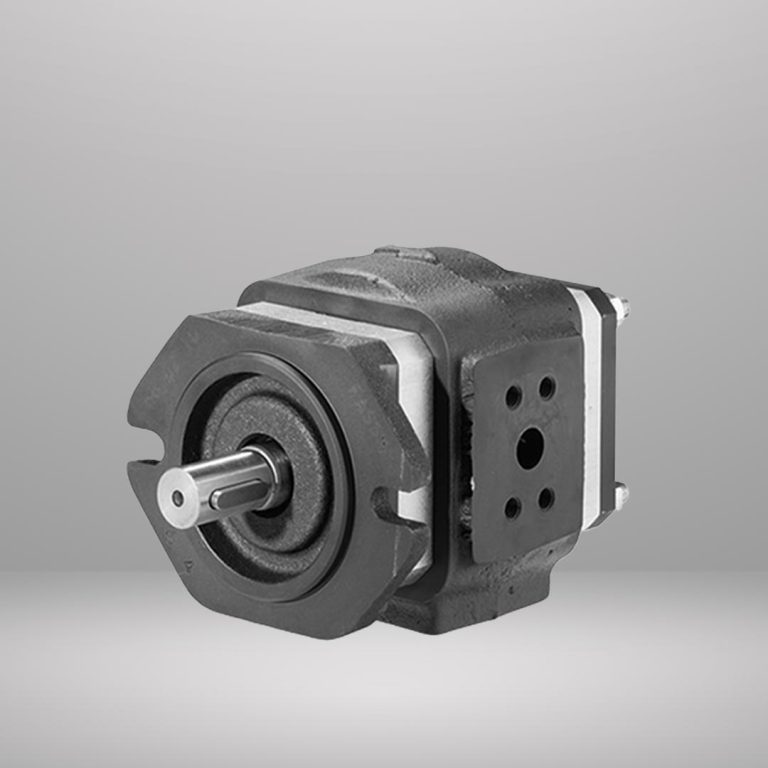

Eckerle EIPH High Pressure Internal Gear Pump
The Eckerle EIPH pump is an advanced solution for demanding industrial hydraulic applications, designed to meet the highest performance requirements. It offers advantages including low-noise functionality, excellent efficiency and a long service life. The EIPH pump is based on the proven gap-compensated Eckerle internal gear pump design and has been established in the industry for over 40 years.
Key advantages of the Eckerle EIPH industrial pumps:
- Internal gear pump with axial and radial gap compensation
- Radial compensation with segments
- Suction and pressure side radial
- Low noise
- Long service life
- Low pulsation (pressure pulsation ~2 %)
- Multi-current combinations
The Eckerle EIPH product catalogue comprises models: EIPH2 | EIPH3 | EIPH5 | EIPH6 with key technical details across each as follows:
EIPH2
- Maximum displacement: 4.2 – 24.8 cm³/rev
- Continuous operating pressure: 250 – 330 bar
- Peak operating pressure: 280 – 350 bar (10 seconds/15% duty cycle)
- Maximum speed: 3000 – 4200 rpm
EIPH3
- Maximum displacement: 14.3 – 65.3 cm³/rev
- Continuous operating pressure: 280 – 330 bar
- Peak operating pressure: 300 – 350 bar (10 seconds/15% duty cycle)
- Maximum speed: 1800 – 4000 rpm
EIPH5
- Maximum displacement: 40.2 – 100.5 cm³/rev
- Continuous operating pressure: 280 – 300 bar
- Peak operating pressure: 290 – 330 bar (10 seconds/15% duty cycle)
- Maximum speed: 3000 – 3600 rpm
EIPH6
- Maximum displacement: 40.8 – 249.9 cm³/rev
- Continuous operating pressure: 140 – 330 bar
- Peak operating pressure: 150 – 340 bar (10 seconds/15% duty cycle)
- Maximum speed: 2000 – 2400 rpm
Contact Us for further technical details and configuration options.
