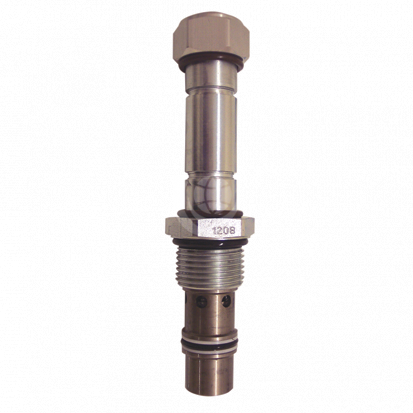

    HydraForce Flow Control PV72-20 Spool-Type, 2-Port, Normally Closed, Restrictive

    HydraForce Flow Control PV72-20 Spool-Type, 2-Port, Normally Closed, Restrictive

    Description

    HydraForce PV72-20 solenoid-operated, two-port, pressure-compensated, spool-type, normally closed when de-energised, proportional flow control valve.

    The PV72-20 regulates flow out of port 2 regardless of system working pressure. With increasing current applied to the solenoid, the PV72-20 will increase output flow.

    Features:

    • Choice of two regulated flow ranges
    • Excellent linearity and hysteresis characteristics
    • Hardened spool and cage for long life
    • Efficient wet-armature construction
    • Optional coil voltages and terminations
    • Cartridges are voltage-interchangeable
    • Unitised molded coil design – waterproofing standard
    • Manual override option

    Ratings for the HydraForce PV72-20:

    • Operating pressure: 240 bar (3500 psi)
    • Proof pressure: 345 bar (5000 psi)
    • Burst pressure: 896 bar (13000 psi)
    • Regulated flow: range A: 0 to 64 lpm (0 to 17 gpm); range B: 0 to 37.9 lpm (0 to 10 gpm)
    • Internal leakage: 0.38 lpm (0.1 gpm) fully closed at 207 bar (3000 psi)

    Contact us for further technical details and configuration options.
