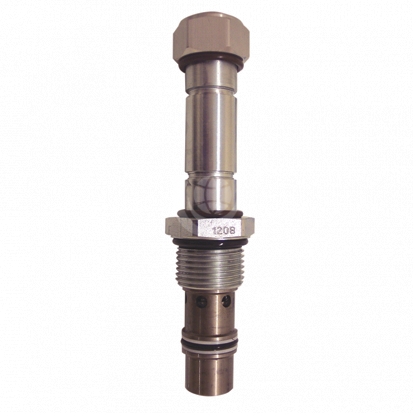

    HydraForce Flow Control PV72-21 Spool-Type, 2-Port, Normally Open, Restrictive

    HydraForce Flow Control PV72-21 Spool-Type, 2-Port, Normally Open, Restrictive

    Description

    HydraForce PV72-21 solenoid operated, electrically-variable, two-port, pressure-compensated, spool-type, normally open when de-energised, proportional flow control valve.

    The PV72-21 will regulate flow out of port 2 regardless of system working pressure. With an increasing current applied to the solenoid, output flow will decrease.

    Features:

    • Excellent linearity and hysteresis characteristics
    • Hardened spool and cage for long life
    • Efficient wet-armature construction
    • Optional coil voltages and terminations
    • Cartridges voltage interchangeable
    • Unitised molded coil design
    • Coil waterproofing standard
    • Manual override option

    Ratings for the Hydraforce PV72-21 valve:

    • Pressure Rating: 240 bar (3500 psi)
    • Proof Pressure: 345 bar (5000 psi)
    • Regulated Flow: 0–57 lpm (15 gpm)
    • Internal Leakage: 0.38 lpm (0.1 gpm) fully closed at 100 current
    • Temperature:
      • -40° to 100°C (-40° to 212°F) with Buna seals
      • -26° to 204°C (-15° to 400°F) with fluorocarbon seals
      • -54 to 107°C (-65 to 225°F)with polyurethane seals

    Contact us for further technical details and configuration options.
