    HydraForce Flow Control PV72-35 Proportional Flow Control, Normally Open

    HydraForce Flow Control PV72-35 Proportional Flow Control, Normally Open

    Description

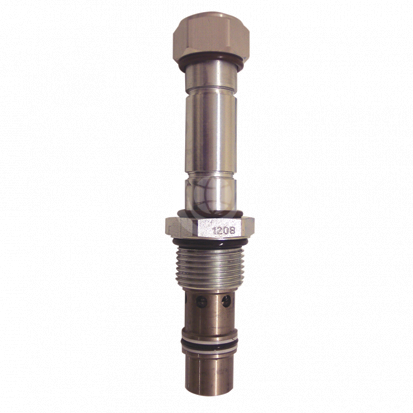

    HydraForce PV72-35 solenoid-operated, spool-type, normally open, proportional flow control valve.

    The PV72-35 provides regulated flow from port 2 to port 3; port 1 should be plugged. The flow is inversely proportional to the current applied to the solenoid. The valve is intended for use with a pressure compensator at a pressure differential not exceeding 12 bar (175 psi).

    Features:

    • Choice of two regulated flow ranges: ‘A’ PV72-35A | ‘B’ PV72-35B
    • Excellent linearity and hysteresis
    • Optional control orifice sizes
    • Hardened spool and cage for long life
    • Optional coil voltages and terminations
    • Efficient wet armature construction
    • Cartridges voltage interchangeable
    • Unitised, molded coil design
    • Coil waterproofing standard
    • Manual override options

    Ratings for the HydraForce PV72-35 valve:

    • Operating pressure: 240 bar (3500 psi)
    • Proof pressure: 345 bar (5000 psi)
    • Burst pressure: 896 bar (13000 psi)
    • Internal leakage: 328 ml/min. (20 cu. in./min.) fully closed at 207 bar (3000 psi)

    Contact us for further technical details and configuration options.
