HydraForce Directional Control SP10-47D Spool-Type, 4-Way, 3-Position, “Motor Spool”

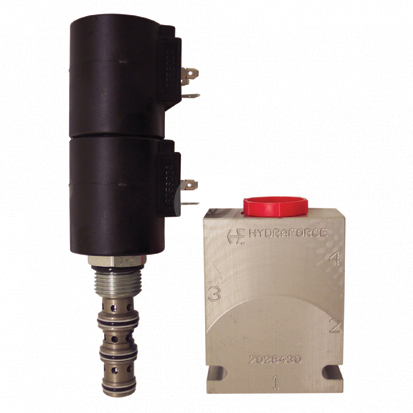

HydraForce SP10-47D solenoid-operated, 4-way, 3-position, spool-type, motor spool, screw-in hydraulic cartridge valve.

When de-energised, the SP10-47D blocks flow to 3 while allowing flow from 2 to 1, and from 4 to 1. When coil S1 is energised flow is allowed from 3 to 4 and from 2 to 1. When coil S2 is energised flow is allowed from 3 to 2 and from 4 to 1. In circuits where work port flows are unequal due to cylinder ratios, the higher return flow should be directed to port 2.

Initial meter-in flow begins at a nominal 0.4 amp on a 12 VDC system. Full flow of 22 lpm (6 gpm) occurs at 1.0 to 1.1 amp on a 12 VDC system.


  • Continuous-duty rated solenoid
  • Hardened precision spool and cage for long life
  • Optional coil voltages and terminations
  • Manual override option
  • Optional waterproof E-Coils rated up to IP69K
  • Efficient wet-armature construction
  • Cartridges are voltage interchangeable
  • Good linearity and hysteresis
  • Industry-common cavity

Ratings for the HydraForce SP10-47D:

  • Operating pressure: 207 bar (3000 psi)
  • Flow: up to 22 lpm (6 gpm) based on 50% duty-cycle and coil temperature of 20°C (140°F)
  • Internal leakage: 246 cc/minute (15 cu. in./minute) max. per side at 207 bar (3000 psi)
  • Hysteresis: less than 7%
  • Temperature:
    • -40° to 100°C (-40° to 212°F) with Buna seals
    • -26° to 204°C (-15° to 400°F) with fluorocarbon seals
  • Coil duty rating: continuous up to 115% of nominal voltage
