    HydraForce Directional Control SP10-57C Spool-Type, 5-Way, 3-Position with Load Sense

    HydraForce Directional Control SP10-57C Spool-Type, 5-Way, 3-Position with Load Sense

    • Description

    Description

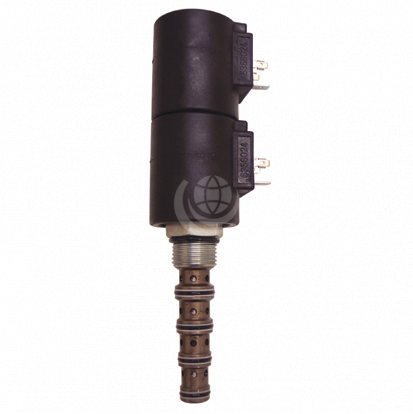

    HydraForce SP10-57C solenoid-operated, 5-way, 3-position, spool-type, screw-in hydraulic cartridge valve with integral load sense port.

    When de-energised, the SP10-57C blocks flow to all ports. When coil #1 is energised, flow is allowed from 5 to 2, and from 4 to 3. When coil #2 is energised, flow is allowed from 5 to 4, and from 2 to 3. Load sense is connected to port 5 when the spool is in shifted positions.

    Features:

    • Continuous-duty rated solenoid
    • Hardened precision spool and cage for long life
    • Optional coil voltages and terminations
    • Manual override option
    • Optional waterproof E-Coils rated up to IP69K
    • Cartridges are voltage interchangeable
    • Industry-common cavity

    Ratings for the HydraForce SP10-57C valve:

    • Operating pressure: 250 bar (3625 psi)
    • Flow: up to 22.7 lpm (6 gpm)
    • Internal leakage: 246 cc/minute (15 cu. in./minute) max. at 207 bar (3000 psi)
    • Temperature:
      • -40° to 100°C (-40° to 212°F) with Buna seals
      • -26° to 204°C (-15° to 400°F) with fluorocarbon seals
      • -54° to 104°C (-65° to 225°F) with polyurethane seals
    • Coil duty rating: continuous up to 115% of nominal voltage

    Contact us for further technical details and configuration options.
