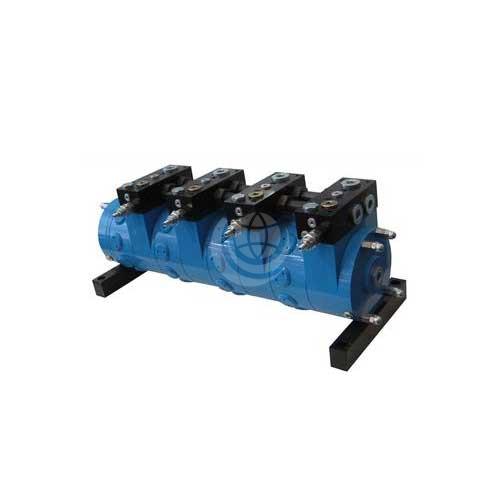

Italgroup FDM Series Multi-Stage Radial Piston Flow Dividers

Flow Dividers


Italgroup FDM series radial piston flow dividers allow a single flow to be divided in to up to 10 sections, with equal or different division ratios.

High volumetric efficiency is achieved by the radial piston construction design, precision levels exceed 99% and there is the option of flanging synchronisation valves directly to the unit. Integrated reset valves compensate for any misalignment at the end-stroke and protect against pressure peaks and cavitation.

The range comprises models: FDM 34 | FDM 50 | FDM 75 | FDM 100 – click on the “Technical Data” tab for more details.

All have a maximum of 10 sections and operate at a maximum continuous pressure of 250 bar, and maximum intermittent pressure of 280 bar. Displacement per section ranges from 34 cc/rev to 494 cc/rev. Peak pressure across the range is 320 bar and maximum continuous flow per section varies from 45 to 280 litres/minute, with maximum intermittent flow varying from 60 to 350 litres/minute. Maximum power per section ranges from 20 hp / 15kW to 134hp / 100kW. Dry weight ranges from 34kg to 45kg per section.

Contact us for further technical details and configuration options.

Download the Italgroup FDM Series Technical Catalogue >>>
