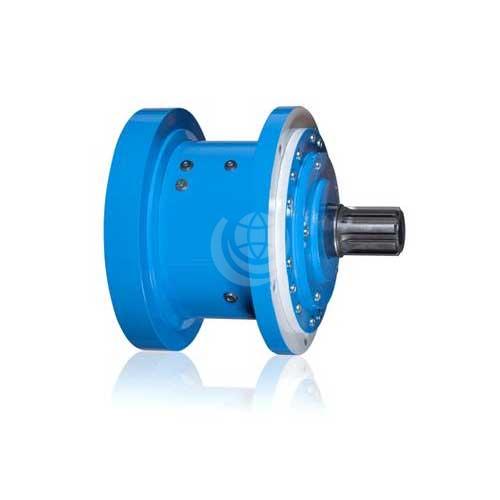

Italgroup brakes are spring-applied hydraulic-released parking / emergency brakes.
Available in models: RA | RB | B1 | B2 | B3 | B4 the range provides braking torque from 250Nm to 30,000Nm. Other features include:
- support bearings.
- direct coupling with motors and gearboxes.
- multi-disc wet (oil)
| Brake Model | Size | Braking Torque (Nm) | Release Pressure [bar] | Max Pressure [bar] | Weight (kg) |
|---|---|---|---|---|---|
| RA | A | 90 - 550 | 17 - 39 | 300 | 14 |
| RB | B | 250 - 1,700 | 22 - 25 | 300 | 21 |
| B1 | 1 | 4.000 - 5,500 | 35 - 40 | 350 | 95 |
| B2 | 2 | 7.500 - 12,000 | 35 | 350 | 135 |
| B3 | 3 | 15,000 - 20,000 | 40 - 45 | 350 | 300 |
| B4 | 4 | 20,000 - 30,000 | 40 - 45 | 350 | 400 |
Contact us for further technical details and configuration options.
