Description

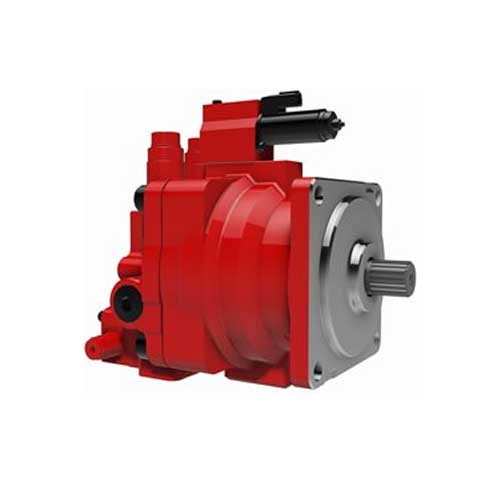

The Kawasaki M2X | M5X series are high performance motors for swing applications. The M5X series is an extremely compact fixed displacement swash plate type axial piston motor with built-in parking brake designed for the swing function of excavators, cranes and other construction machinery.
| Motor | M2X63 | M5X130 | M5X180 | M2X210 |
|---|---|---|---|---|
| Displacement (cm³) | 64 | 129.2 | 180.1 | 210.1 |
| Rated Pressure (Mpa) | 29.4 | 32.4 | 32.4 | 29.4 |
| Maximum Pressure (Mpa) | 34.3 | 39.2 | 39.2 | 34.3 |
| Maximum Speed | 2200 | 1850 | 1680 | 1400 |
| Rated Output Torque (Nm) | 300 | 670 | 932 | 980 |
| Rated Output Power (kW) | 69 | 129 | 163 | 144 |
| Mass (kg) | 29 | 47 | 61 | 66 |
The mounting flange of the motor has been enlarged to enable it to be directly connected with the ring gear of the reduction gear box.
Contact us for further technical details and configuration options.
