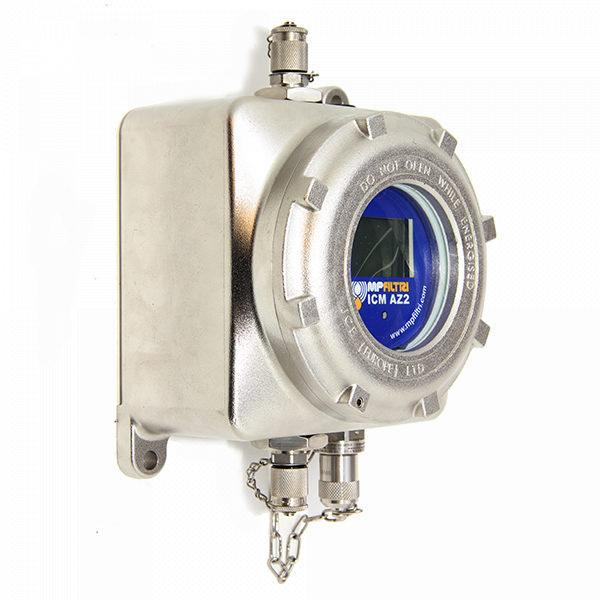

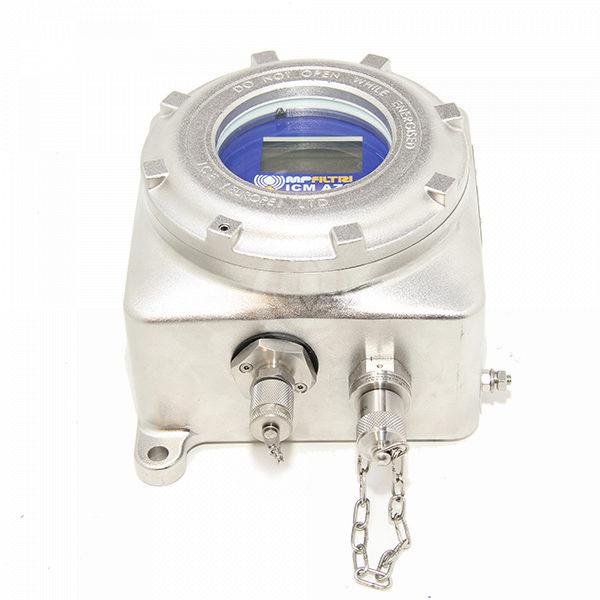

MP Filtri AZ2 ATEX In-Line Contamination Monitor

Description

The MP Filtri AZ2 contamination monitor can automatically measure and save particulate contamination, moisture and temperature levels in various hydraulic fluids.

It mounts directly to systems, where ongoing measurement or analysis is required, in high risk or explosive environments.

Features of the MP FIltri AZ2 monitor include:

  • Live real time monitoring
  • Calibrated to relevant ISO standards
  • Manual, automatic and remote control flexibility
  • Various communication protocols as standard including: RS485, MODBUS, CANBUS
  • ATEX zone II Cat 3G
  • LPA view, Windows-based software
  • 8 channel contamination measurement and display
  • Measures and displays the following international standard formats: ISO 4406:1999 | NAS 1638 | SAE AS 4059 revision E tables 1 and 2
  • Moisture and temperature sensing (fluid dependent)
  • Data logging and 4000 test result memory
  • Multicolour indicators via LED with output alarm signals as standard
  • Robust die cast stainless steel construction
  • Pressure max. 400 bar
  • Environmental protection IP66 versatile

Contact us now for technical advice and configuration options.
