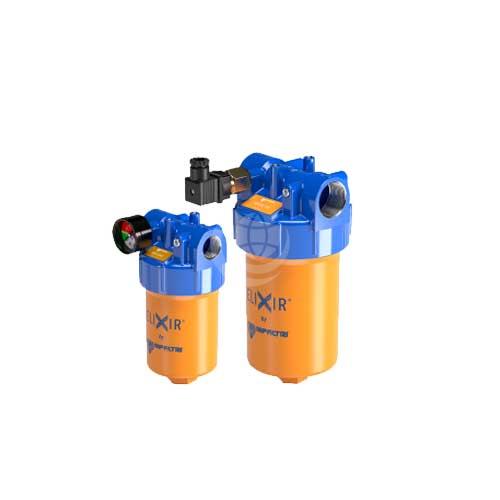

MP Filtri ELIXIR RFEX Return Filters

MP Filtri ELIXIR RFEX low pressure concept filters are lighter, easier to use, and kinder to the environment. They have been designed for in-line connections and to handle working pressures up to 1,6MPa (16 bar).

They have flow rates up to 260 litres/minute, female threaded connections up to 1 1/4″, and SAE connections up to 1 5/8”

The complete ELIXIR series comprises:

• SFEX suction filters
• RFEX return filters
• LFEX delivery filters with differential indicator

MP Filtri ELIXIR RFEX filters are available in 4 sizes: 060 | 080 |110 | 160. They are completely interchangeable with the previous MPS 050 | 070 | 100 | 150 series spin-on filters.

They have 1.75 bar return filter bypass valves and a new sealing system provides enhanced reliability – keeping the O-ring in line with the thread of the bowl even in heavy vibration applications.

Contact us for further technical details and configuration options.
