    Nordvalves P80 Monoblock Valves 1/2″

    Description

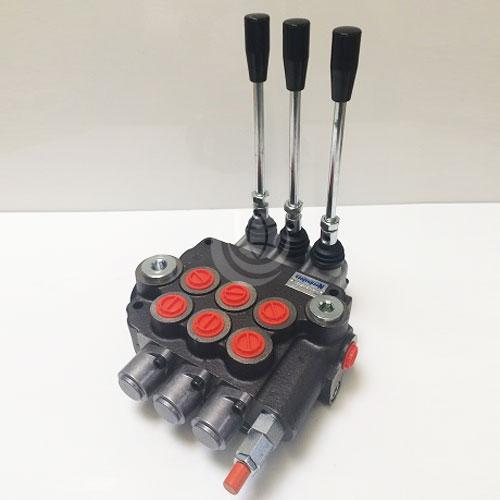

    Nordvalves P80 monoblock directional control valves, available in 1 to 6 working sections:

    • Spring-centred
    • 1/2″ BSP ports
    • Ambient temperature: -40°C to +60°C
    • Hydraulic fluid: mineral-oil-based hydraulic oil
    • Fluid temperature: -15°C to +80°C
    • Maximum operating pressure: P=250 bar; T=50 bar; A, B = 300 bar
    • Leakage: (A, B-T)18 cm³/min at 120 bar
    • Nominal flow: 80 litres/minute

    Contact us for further technical details and configuration options.

    Download the Nordvalves P80 Series Technical Catalogue >>>
