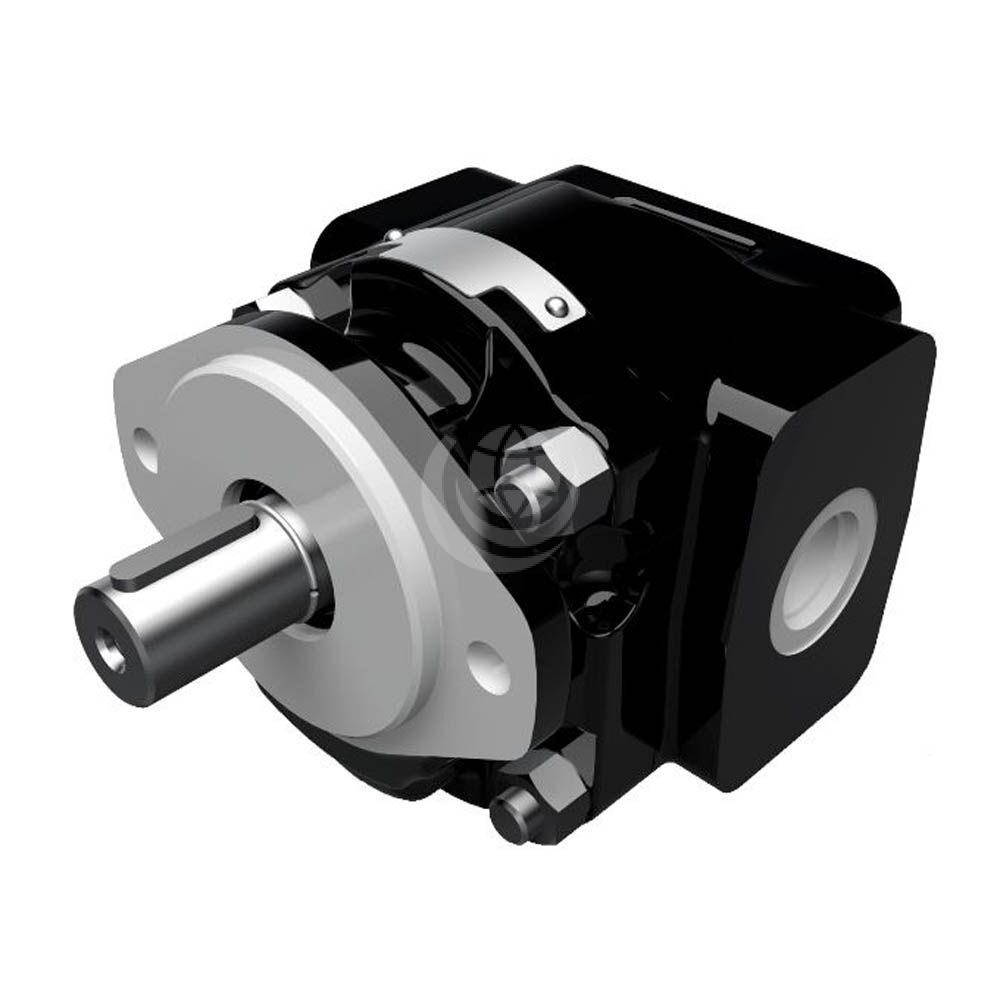

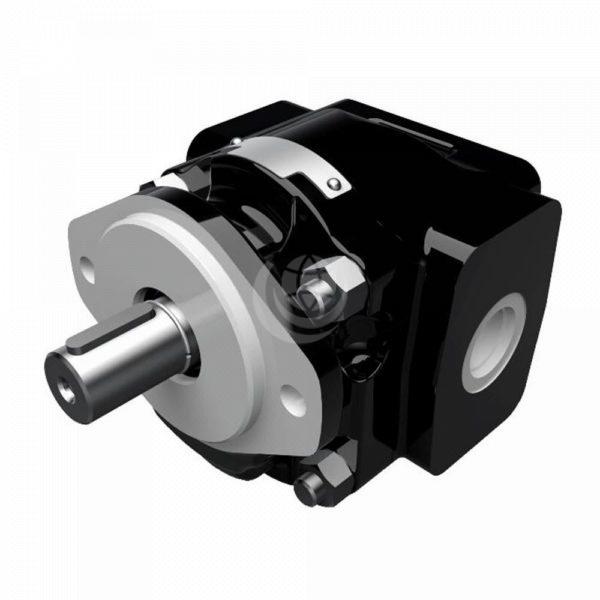

    Parker Commercial PGP620 Pump – Cast Iron Gear Pump

    Parker Commercial PGP620 Pump – Cast Iron Gear Pump

    • Description
    • Technical Data

    Description

    Formerly made by Commercial Hydraulics before they joined the Parker Group, Parker PGP620 series pumps are fixed displacement gear pumps. They provide high efficiency, high performance and high power density due to their interlocking two-piece cast iron construction.

    Single unit Parker PGP620 series pumps are available in 12 displacements from 16cc/rev to 52cc/rev: PGP620A-0160 | PGP620A-0190 | PGP620A-0230 | PGP620A-0260 | PGP620A-0290 | PGP620A-0330 | PGP620A-0360 | PGP620A-0370 | PGP620A-0410 | PGP620A-0440 | PGP620A-0500 | PGP620A-0520

    Maximum continuous pressures are up to 275 bar and speeds are up to 3500 rpm – see the technical details tab.

    Features and benefits:

    • Two-piece, interlocking body construction for high efficiency and high pressure
    • Cast iron pumping sections for durability
    • Journal bushings for long life
    • Pressure balanced thrust plates for high efficiency
    • 12 tooth gears, bronze balance plates
    • Tandem, triple and cross-frame pumps available
    • Common inlets available for tandem and triple pumps
    • High power through-drive capability
    • Wide range of integral valves for power steering, power brakes, fan drivers and implement hydraulics
    • Load-sense and solenoid-operated unloading valves
    • Clockwise and counter-clockwise rotation

    Contact us for further technical details and configuration options.

    Download the Parker PGP620 Technical Catalogue >>>

    Parker PGP620 Pumps - Standard Displacements - Single Unit
    PGP / PGM 620 CodeDisplacement (cm³/rev)Max Continuous Pressure (bar)Minium Speed (rpm)Maximum Speed (rpm)
    0160162755003500
    0190192755003500
    0230232755003500
    0260262755003500
    0290292755003500
    0330332755003500
    0360362505003500
    0370372505003500
    0410412205003500
    0440442105003500
    0500502105003000
    0520522105003000
