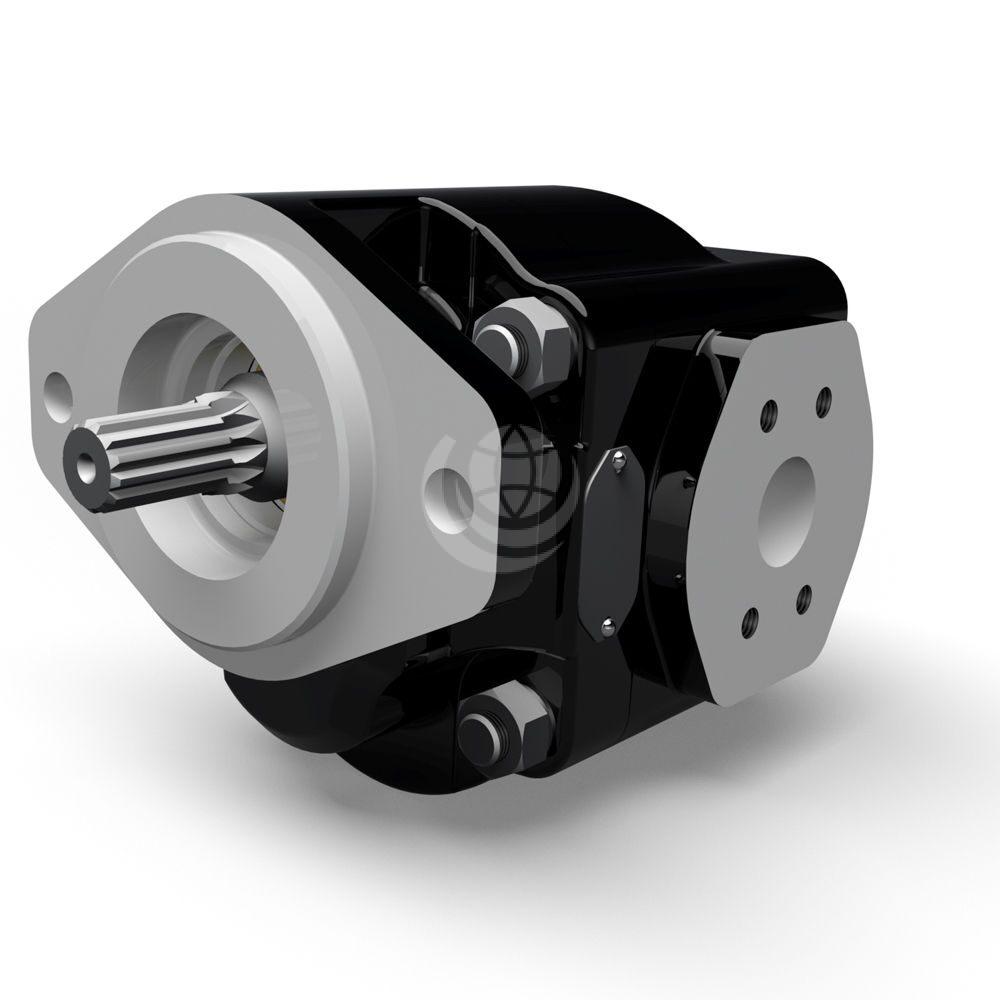

    Parker Commercial PGP640 Pump – Cast Iron Gear Pump

    Parker Commercial PGP640 Pump – Cast Iron Gear Pump

    Description

    Formerly made by Commercial Hydraulics before they joined the Parker Group, Parker PGP640 series pumps are fixed displacement gear pumps. They provide high efficiency, high performance and high power density due to their interlocking two-piece cast iron construction.

    Single unit Parker PGP640 series pumps are available in displacements from 30cc/rev to 100cc/rev: PGP640A-300 | PGP640A-350 | PGP640A-400 | PGP640A-450 | PGP640A-500 | PGP640A-550 | PGP640A-600 | PGP640A-650 | PGP640A-700 | PGP640A-750 | PGP640A-800 | PGP640A-900 | PGP640A-1000

    Operating pressures are up to 310 bar and speeds are up to 3000 rpm – see the technical details tab.

    Features and benefits :

    • Two-piece, interlocking body construction for high efficiency and high pressure
    • Cast iron pumping sections for durability
    • Journal bushings for long life
    • Pressure balanced thrust plates for high efficiency
    • 12 tooth gears, bronze balance plates
    • Tandem, triple and cross-frame pumps available
    • Common inlets available for tandem and triple pumps
    • High power through-drive capability
    • Wide range of integral valves for power steering, power brakes, fan drivers and implement hydraulics
    • Load-sense and solenoid-operated unloading valves
    • Clockwise and counter-clockwise rotation

    Contact us for further technical details and configuration options.

    Download the Parker PGP640 Technical Catalogue >>>

    Parker PGP 640 - Standard Displacements - Single Unit
    PGM / PGP 640 Code Displacement (cm³/rev)Max Continuous Pressure (bar)Minium Speed (rpm)Maximum Speed (rpm)
    300303105003000
    350353105003000
    400403105003000
    450453105003000
    500503105003000
    550553105003000
    600602905003000
    650652655003000
    700702455003000
    750752255003000
    800802105003000
    900901905003000
    10001001805003000
