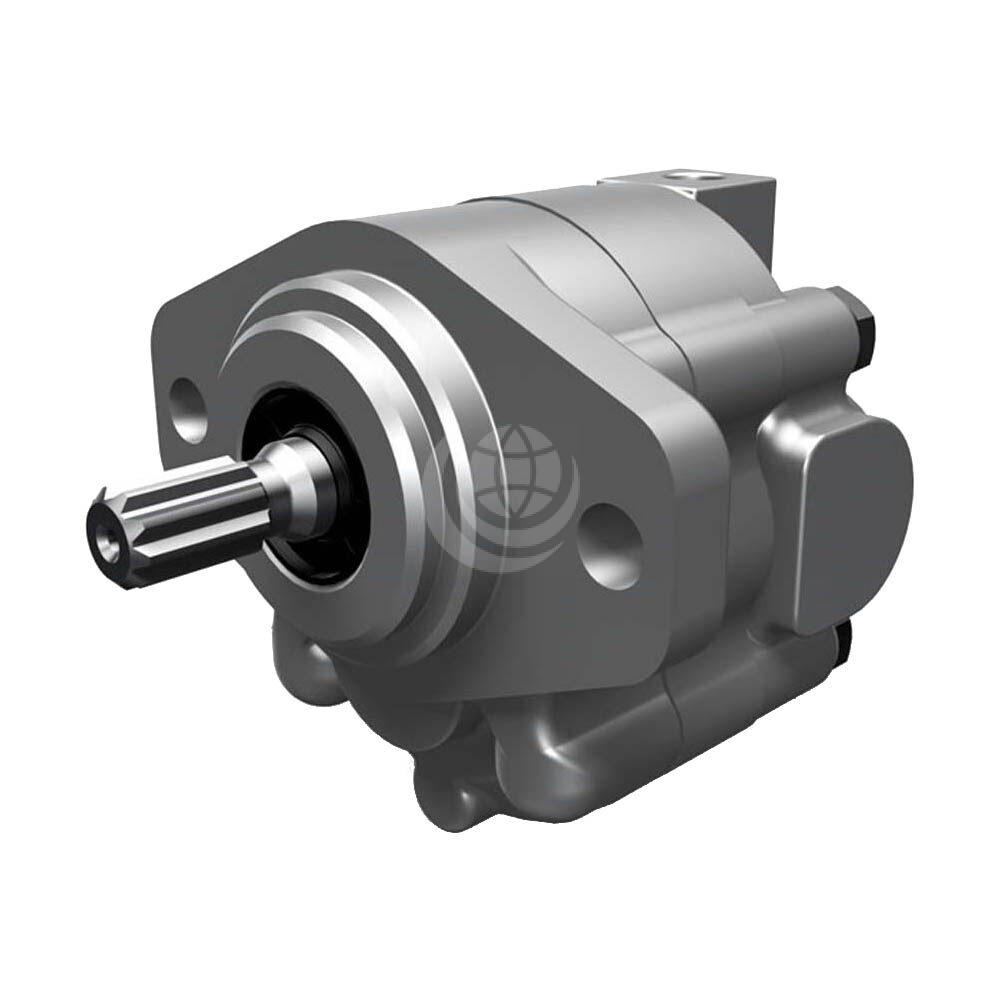

Parker D Series Pump – Aluminium Gear Pump

Parker D series pumps were formerly made by Commercial Intertech before they joined Parker Group. They are fixed displacement, pressure-loaded gear pumps, offering high performance and high power density due to their aluminium construction.

Features:

• Pressure-loaded design
• Efficient, simple design – few moving parts
• Exceptionally compact and lightweight for their capacity
• Efficient at high pressure operation
• Resistant to cavitation effects
• High tolerance to system contamination
• Reliable under cold weather operation
• Sleeve-bearing construction
• Multi-fluid compatibility
• Optional built-in relief valve

Summary technical specifications for Parker D series pumps are:

• Displacements from 1.87 cc/rev to 10.5 cc/rev
• Operating pressures up to 172 bar (2,500 psi)
• Speeds up to 4,000 rpm
• Clockwise and counter-clockwise pumps available
• SAE shafts, flanges and porting available

Contact us for further technical details and configuration options.
