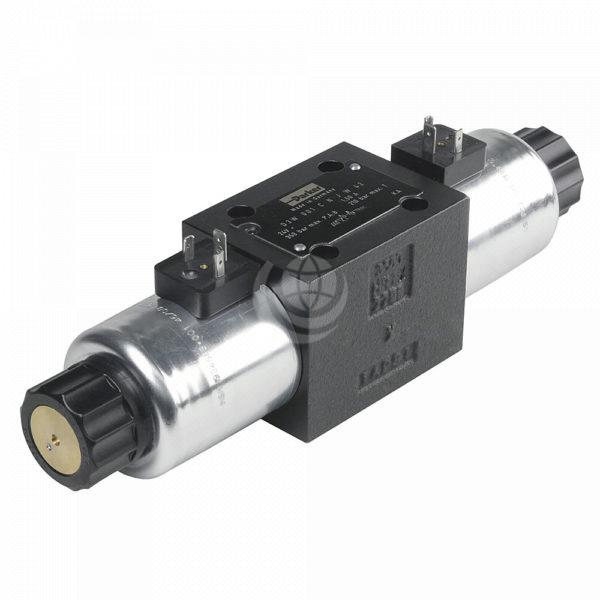

Parker D3W Series Directional Control Valve


The Parker D3W valve is an NG10 direct operated directional control valve. It provides high functional limits up to 150 litres/minute together with a low, energy-saving pressure drop.

Features and benefits include:

  • Maximum pressure of 350 bar
  • Compact, proven design
  • High functional limits – low forces resulting in safe operation also at high flow rates
  • Low pressure drop – resulting in low energy losses in operation

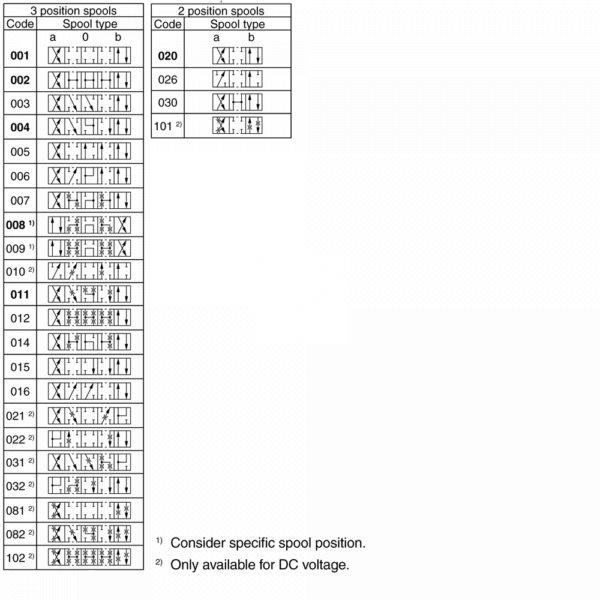

  • Wide range of spools to fit all hydraulic systems
  • Available as 5-chamber valve (D3DW) for high tank pressure and extreme flow conditions
  • Versions with position control, additional surface protection and connector variants available.

There are a wide variety of further options for the Parker D3W valve including soft shift anchor tubes for smooth operation.

Contact us for further technical details and configuration options.

Download the Parker D3W Technical Catalogue >>>
