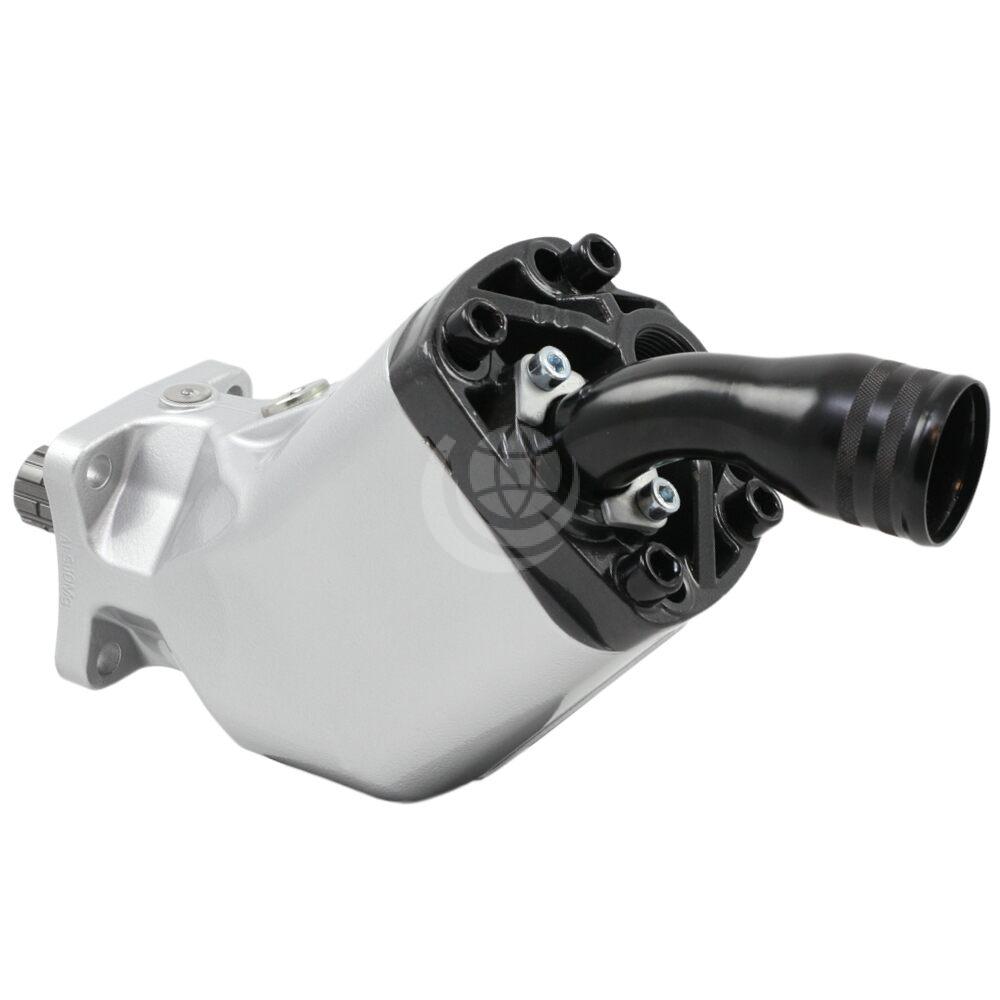

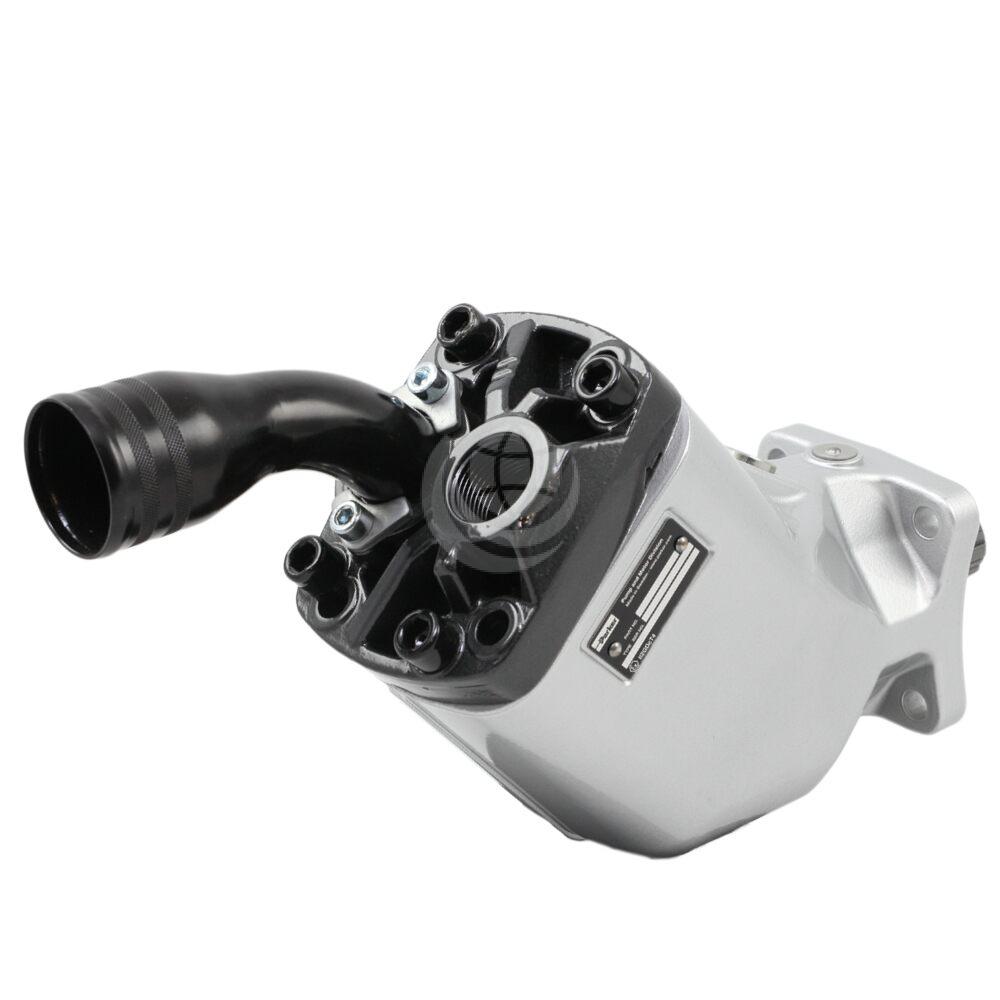

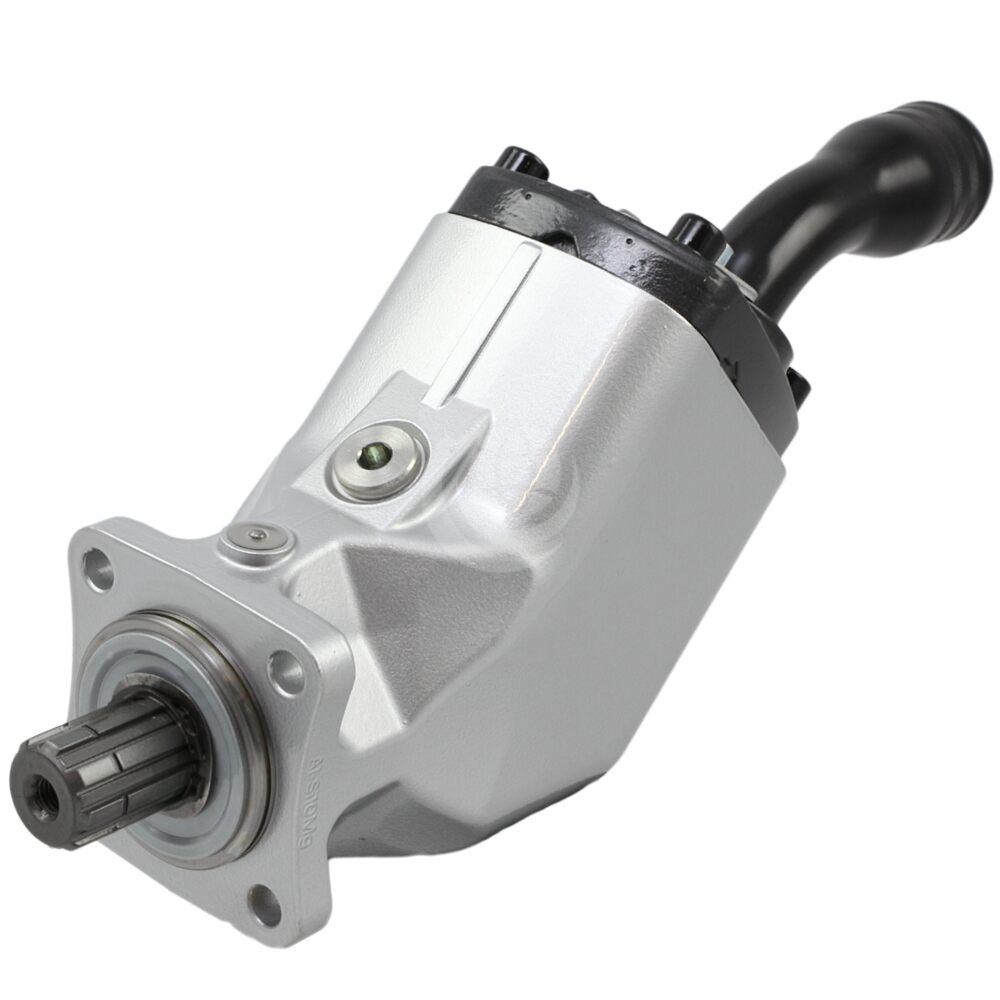

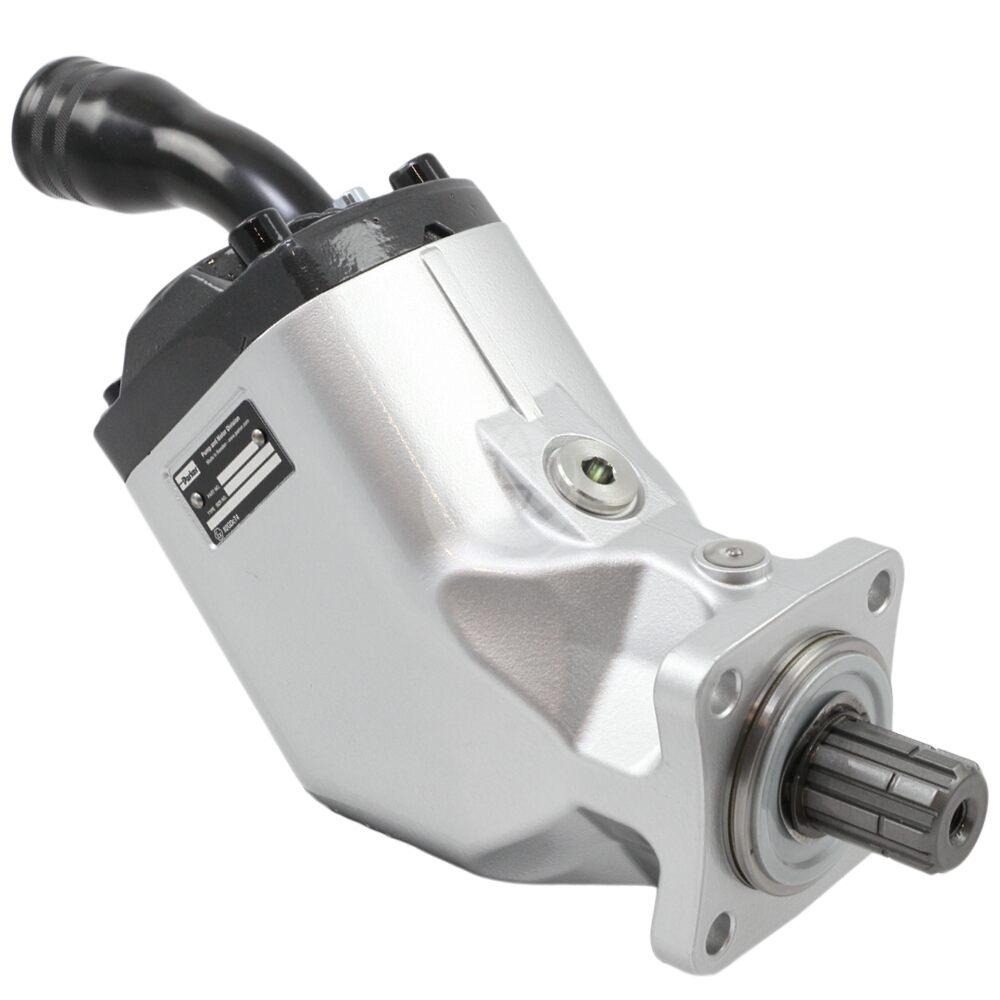

    Parker F1 Pump – Fixed Displacement

    Parker F1 Pump – Fixed Displacement

    Description

    Parker F1 pump series is a further development of their well known ‘truck pump’. The F1 offers many additional features for operators of cargo cranes, hook loaders, skip loaders, forest cranes, concrete mixers and similar truck applications.

    They are available in 4 sizes: 25 cc | 41 cc | 51 cc | 61 cc – see the technical data tab for specifications.

    Features and benefits of Parker F1 pumps include:

    • efficient, straight-forward design
    • compact design and inexpensive installation
    • low leakage, laminated piston rings
    • positive synchronisation with timing gear
    • operating pressure up to 350 bar (5076 psi)
    • installation above the reservoir level possible
    • tolerates low temperatures and high temperature shocks
    • shaft end and mounting flange meet the SAE standard for all sizes
    • 45° bent-axis angle
    • optimal inlet port geometry in the end cap
    • single housing design
    • spherical pistons – high speeds
    • laminated piston rings – low leakage
    • positive synchronisation with timing gear
    • installation above the reservoir level possible
    • tolerates low temperatures and high temperature shocks

    Contact us for further technical details and configuration options.

    Download the Parker F1 Pump Technical Catalogue >>>

    Parker F1 Pumps
    F1 Size25415161
    Displacement cm³/rev25.640.951.159.5
    Maxium flow (litres/min)6798112131
    Maximum operating pressure (bar)350350350350
    (psi )5000500050005000
    Shaft speed
    short circuited pump (low pressure)2700270027002700
    max speed at 350 bar2600240022002200
    Torque at 350 bar142227284331
    Input power (kW)39576676
    Weight (kg)8.58.58.58.5
