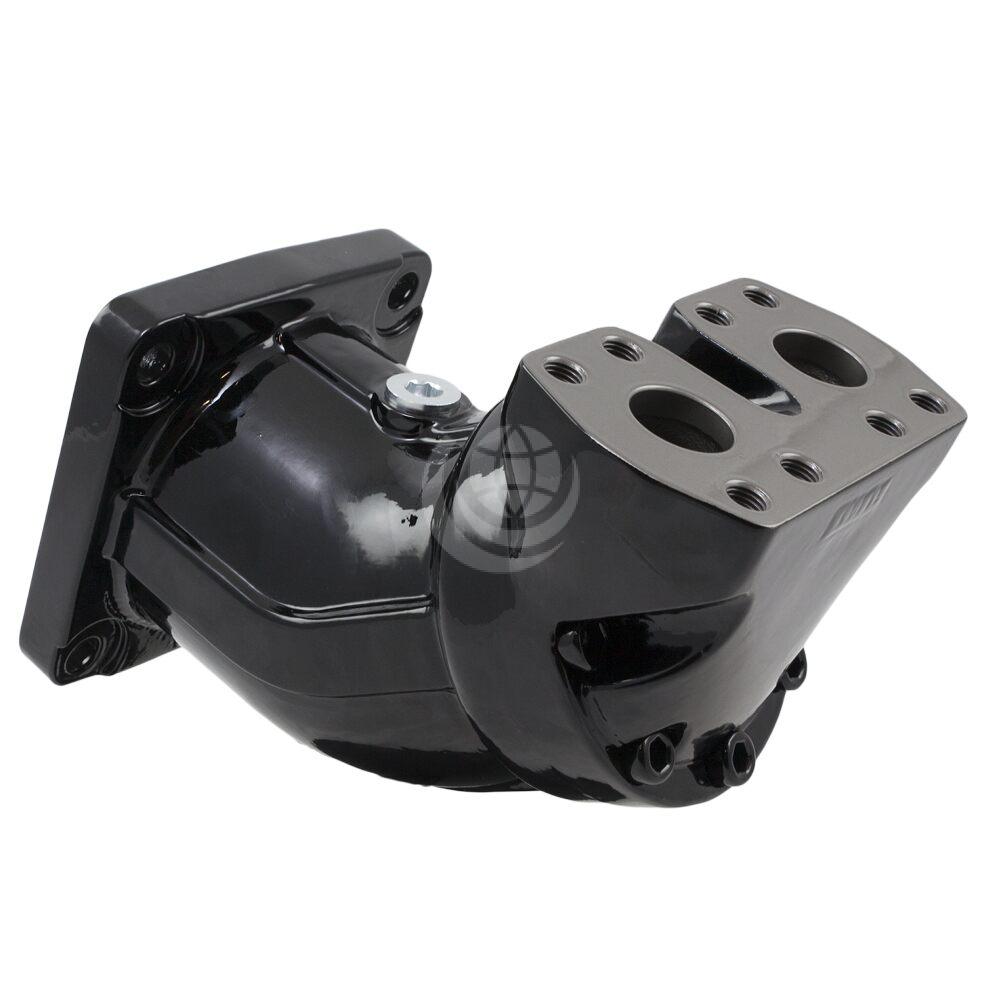

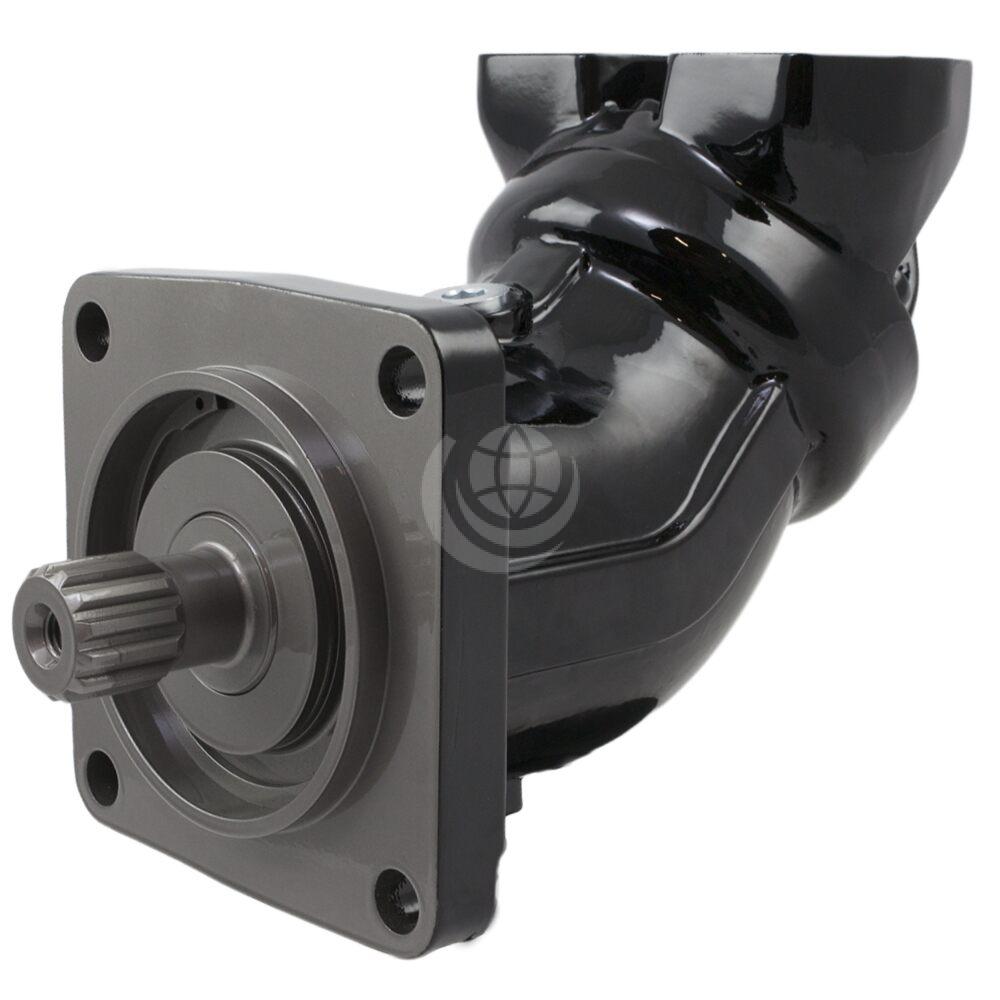

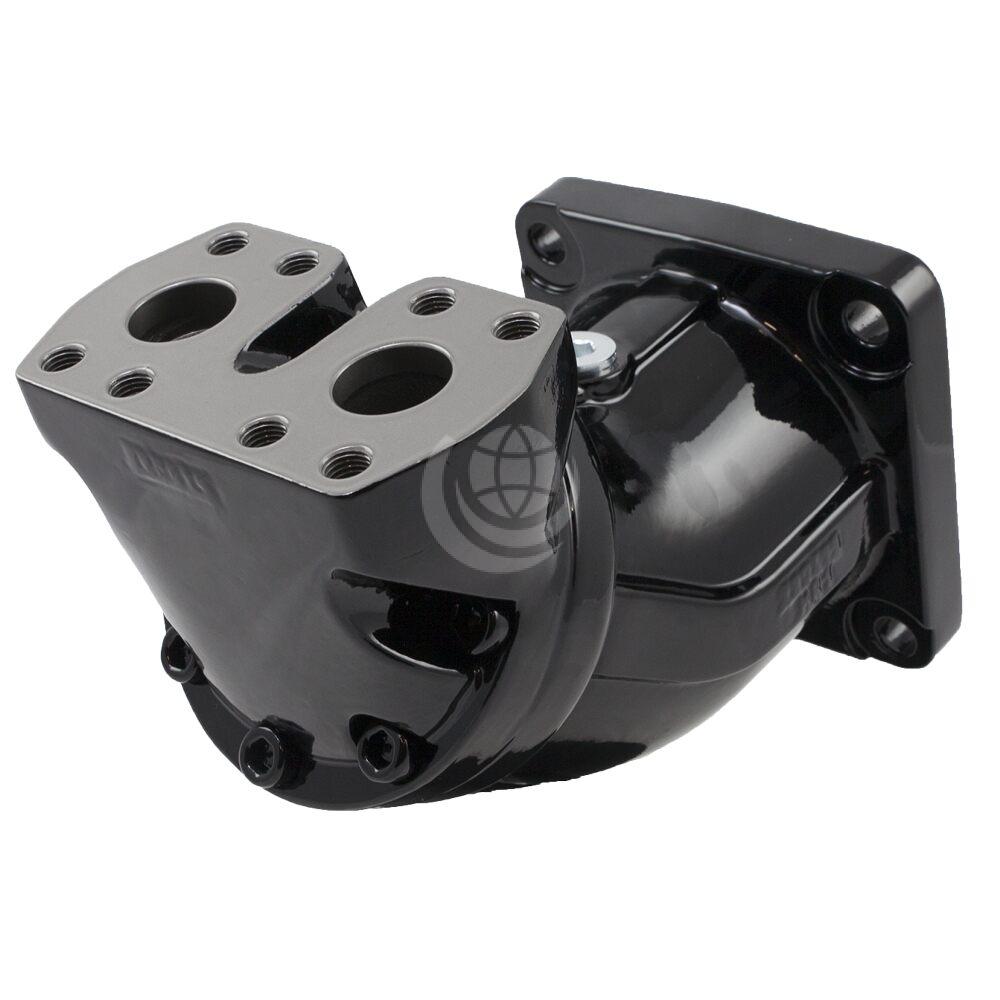

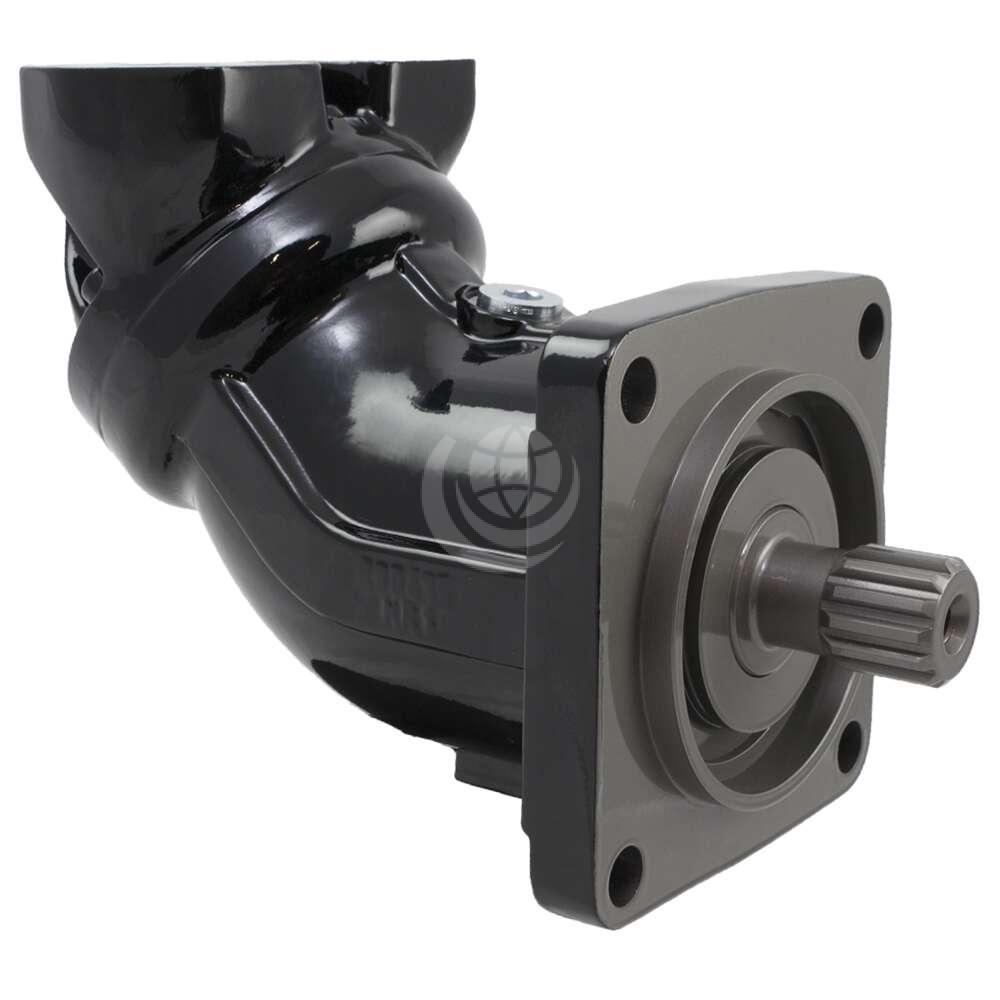

Parker F12 Pump – Fixed Displacement, Bent Axis

Description

The Parker F12 pump is a bent-axis, fixxed displacement pump. It can be used in numerous applications in both open and closed loop circuits and is available in sizes: 30cc | 40cc | 60cc | 80cc | 90cc  | 110cc | 125cc | 152cc | 162cc 182cc | 25cc – see the technical data tab for specifications.

Maximum intermittent pressure is up to 480 bar and continuous operating pressure up to 420 bar. ISO, Cartridge, SAW and SAE versions are available.

Other general features of the Parker F12 pump are:

  • The laminated piston ring offers important advantages such as unbeatable efficiency and thermal shock resistance
  • High allowable speeds and operating pressures means high output power
  • The unique piston locking, timing gear and bearing set-up as well as the limited number of parts add up to a very robust design with long service life and, above all, proven reliability
  • The 40° angle between shaft and cylinder barrel allows for a very compact, lightweight pump
  • Small envelop size and a high power-to-weight ratio
  • Highly engineered valve plates for increased self priming speed and low noise, available with left and right hand rotation
  • Very few moving parts, making them very reliable pumps
  • Very tolerant to high ‘G’ forces and torsional vibrations
  • Heavy duty roller bearings permit substantial external axial and radial shaft loads

Contact us for further technical details and configuration options.

Download the Parker F12 Pump Technical Catalogue >>>

Parker F12 Pump Specifications
F12 Frame Size3040608090110125152162182250
Displacement (cm³/rev)304059.880.493110.1125149.8163.1179.8242
Operating Pressure
Maximum Intermittent (bar)480480480480480480480480480480480
Maximum Continuous (bar)420420420420350420420420420420350
Pump Self-Priming Speed
L or R function; max (rpm)31502870250023002250220021001700160015001500
Drain temperature, max (°C)115115115115115115115115115115115
min (°C)-40-40-40-40-40-40-40-40-40-40-40
Theoretical torque at 100 bar (Nm)47.663.594.9127.6147.6174.8198.4241257289384.1
Weight (kg)11.515.718.625.725.733330.4404077
