We can provide bespoke, custom-made hydraulic cylinders and rotary actuators to suit your specific application. Whether you simply need a ‘one-off’ or are looking for regular, reliable supplies at volume, we can help.
If you’re looking for a bespoke cylinder, our knowledgeable and experienced team can design one tailored specifically to your application requirements and operating parameters. We’re in whatever market you’re in; great knowledge and service have no limits – so as long as you know what your end goal is, then we have the hydraulic cylinder design and wider systems expertise to help you achieve it. And because we are independent, you are guaranteed impartial technical advice and optimal solutions. Every time.
We don’t believe in minimum order quantities – if you only need one hydraulic cylinder making that’s absolutely fine. Even if your ideas are still on the drawing board, our technical team can provide an upfront design and outline prices, and then support you through final production and beyond into “business as usual” activities and production.
Bespoke Hydraulic Cylinders Designed to Suit a Food Manufacturer

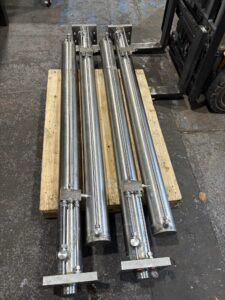

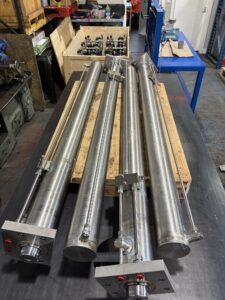

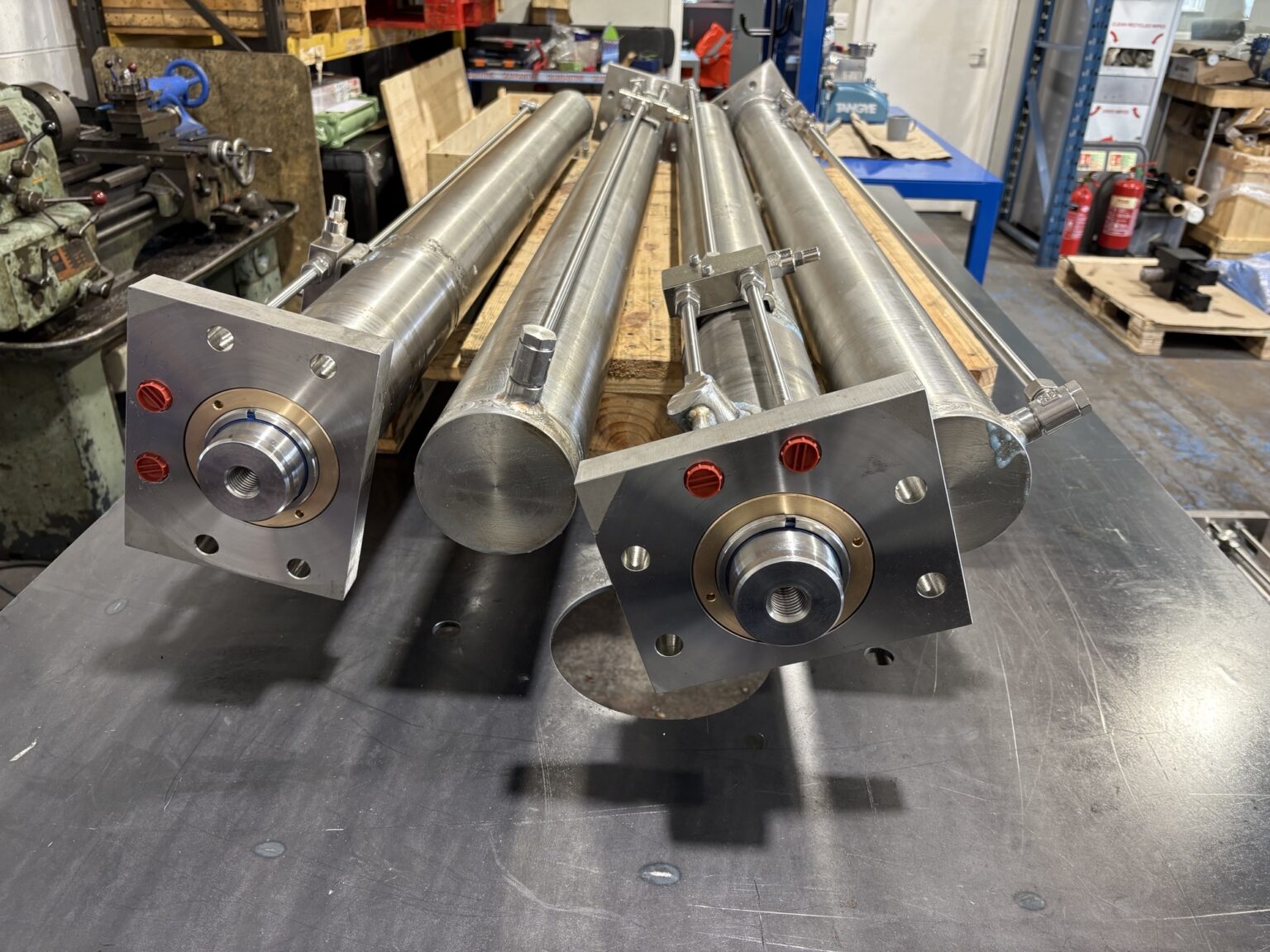

These 8 bespoke hydraulic cylinders (HOL-W Series) were made for a customer’s food manufacturing application.

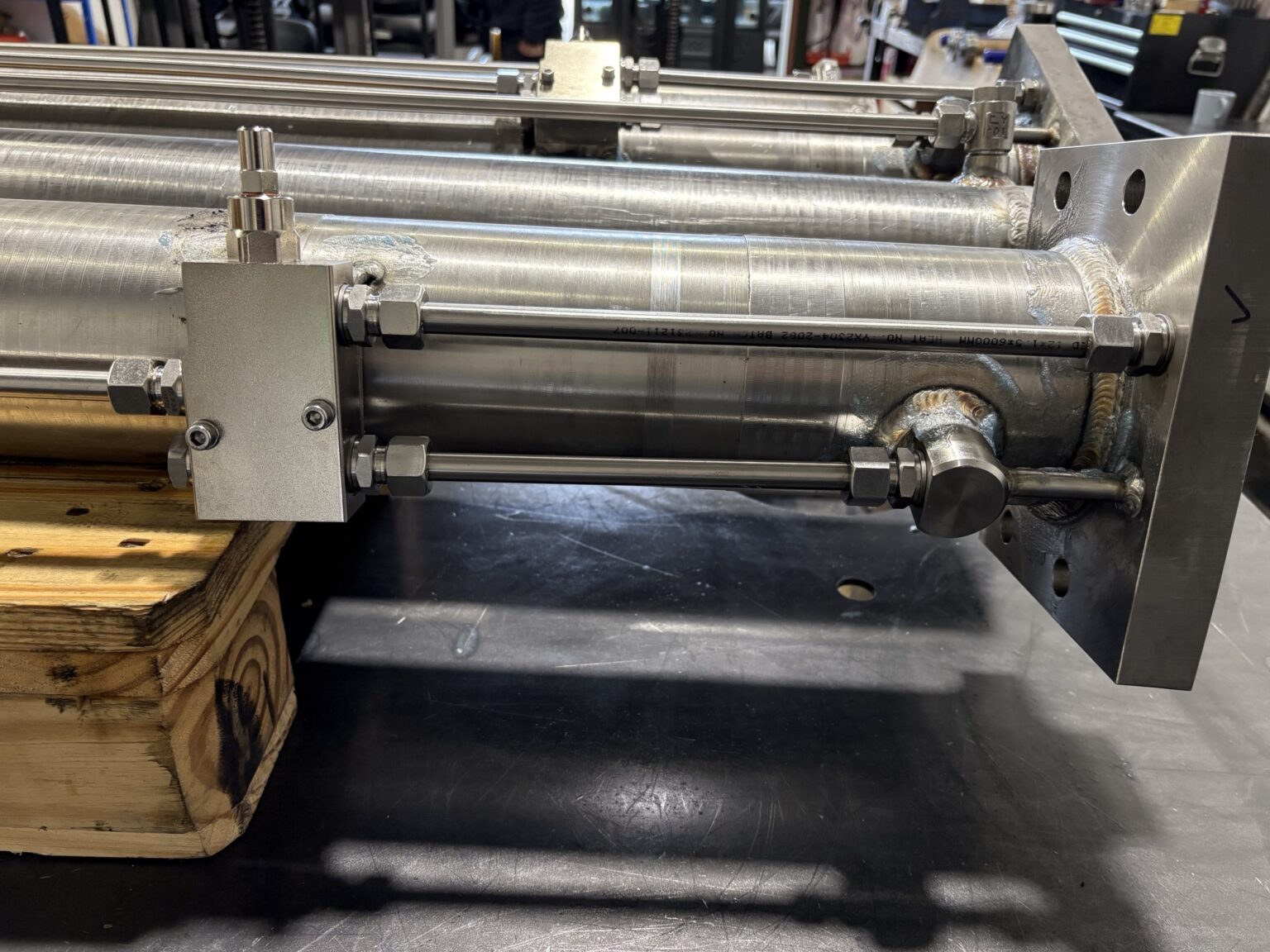

Featuring a double-acting, welded design, each cylinder has been constructed from 316 stainless steel (tubes, end caps, ports and all fittings and pipes) with a 17-4PH stainless steel rod material. Crucially, they have been finished with an epoxy paint to ensure that they resist corrosion.
The cylinders all have a 100mm bore, 70mm rod and 1600mm stroke with a hard-piped counterbalance valve.
For custom made hydraulic cylinders or actuators complete our bespoke cylinder design form…

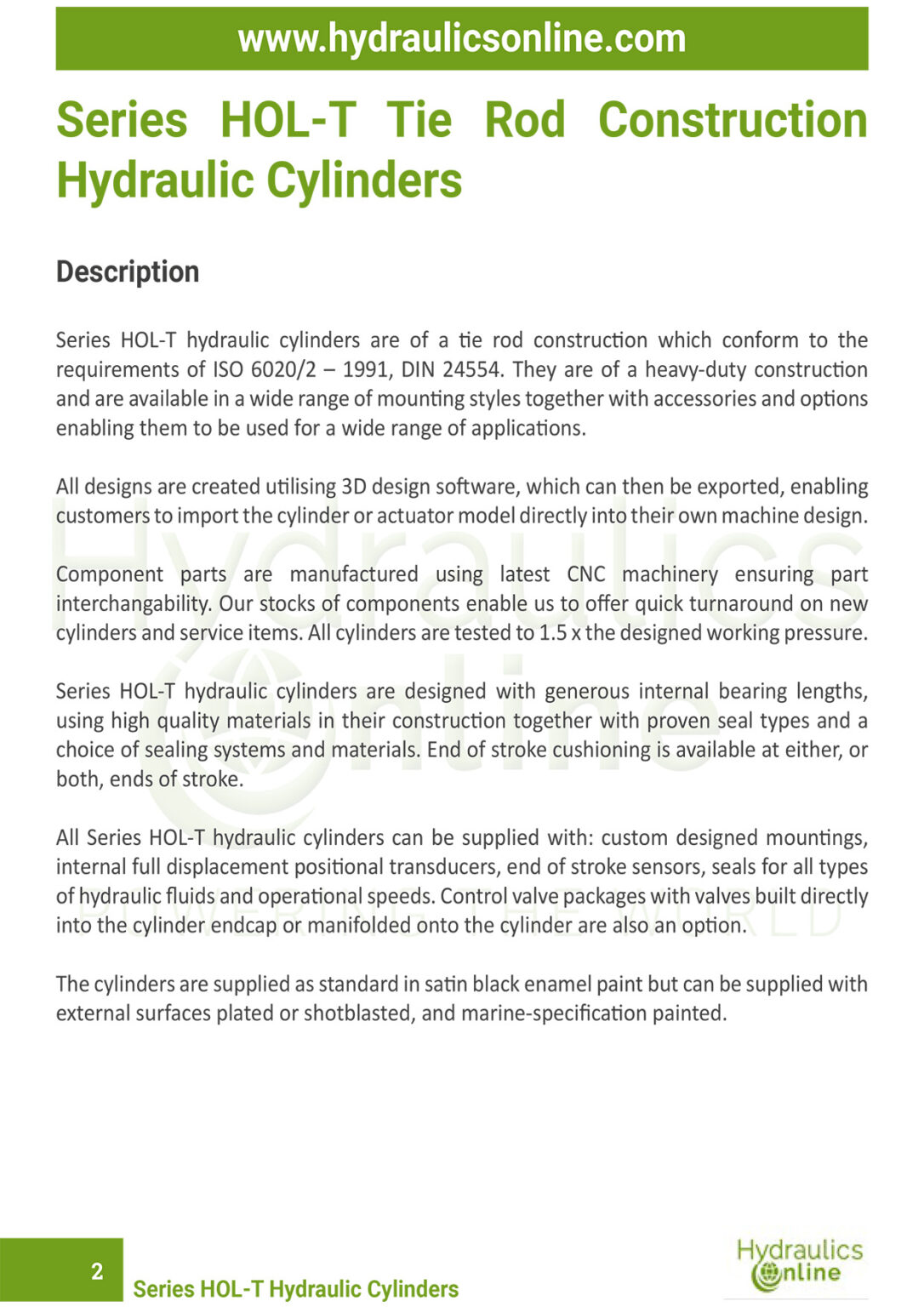

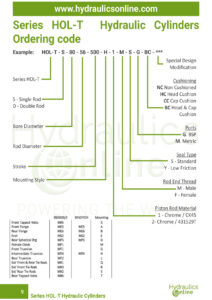

Series HOL-T Tie Rod Hydraulic Cylinders
Series HOL-T hydraulic cylinders are of a heavy-duty, tie-rod construction, conforming to ISO 6020/2 – 1991, DIN 24554 requirements. They are suitable for a wide range of applications with various mounting styles and design options available and are pressure-tested to 1.5 x the designed working pressure.
Cylinder designs are created with 3D design software, and can be exported to enable you to import the cylinder or actuator model directly into your own machine design. Component parts are manufactured using latest CNC machinery ensuring part interchangeability. A quick turnaround on new cylinders and service items.
Series HOL-T hydraulic cylinders are designed with generous internal bearing lengths, using high quality materials in their construction, together with proven seal types and a choice of sealing systems and materials. End of stroke cushioning is available at either, or both, ends of stroke.
All Series HOL-T hydraulic cylinders can be supplied with: custom designed mountings, internal full displacement positional transducers, end of stroke sensors, seals for all types of hydraulic fluids and operational speeds. Control valve packages with valves built directly into the cylinder endcap or manifolded onto the cylinder are also an option.
The cylinders are supplied as standard in satin black enamel paint, but can be supplied with external surfaces plated or shotblasted, and marine-specification painted.

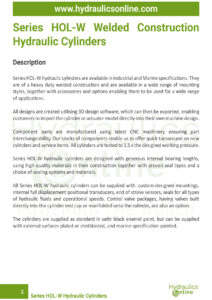

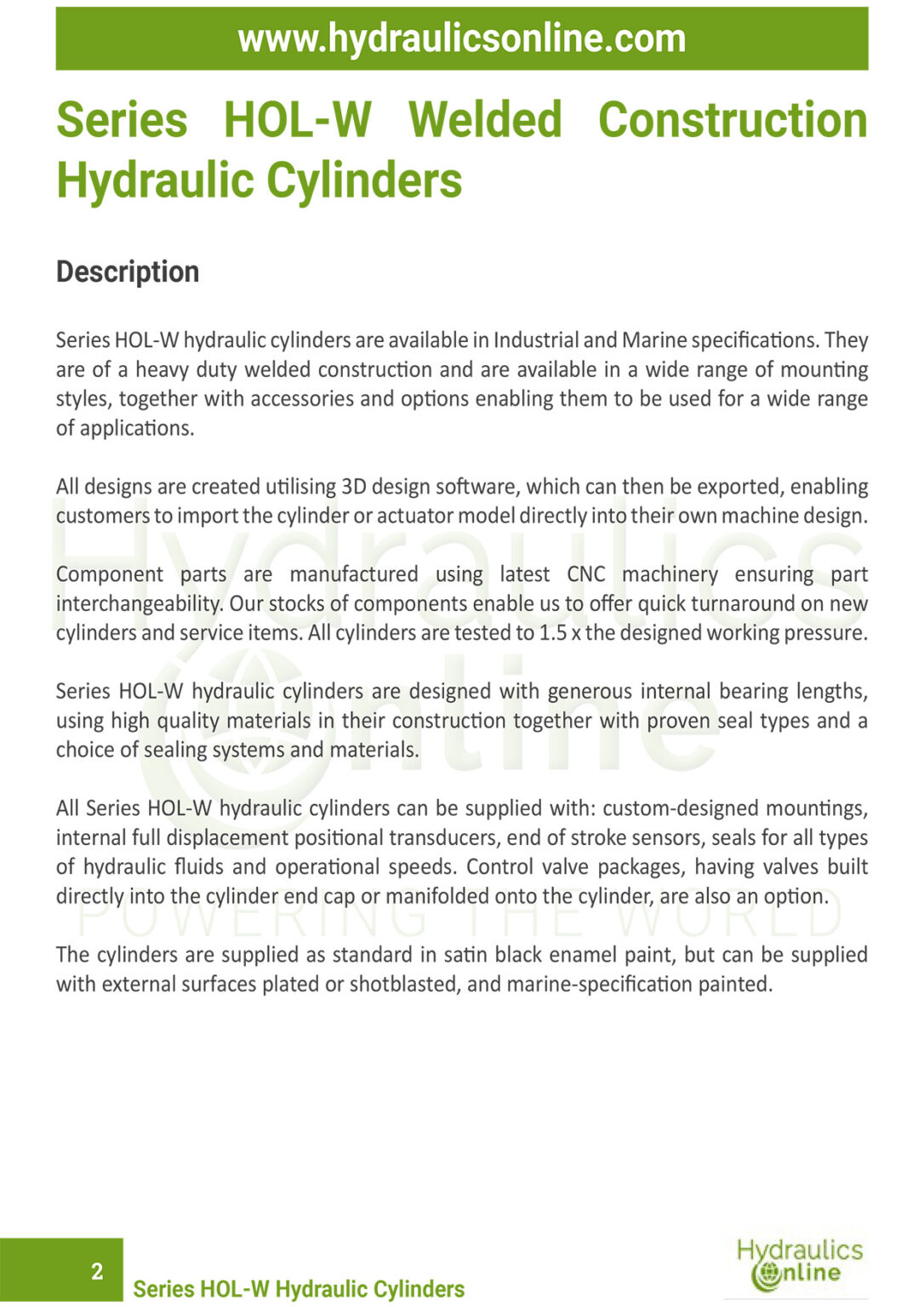

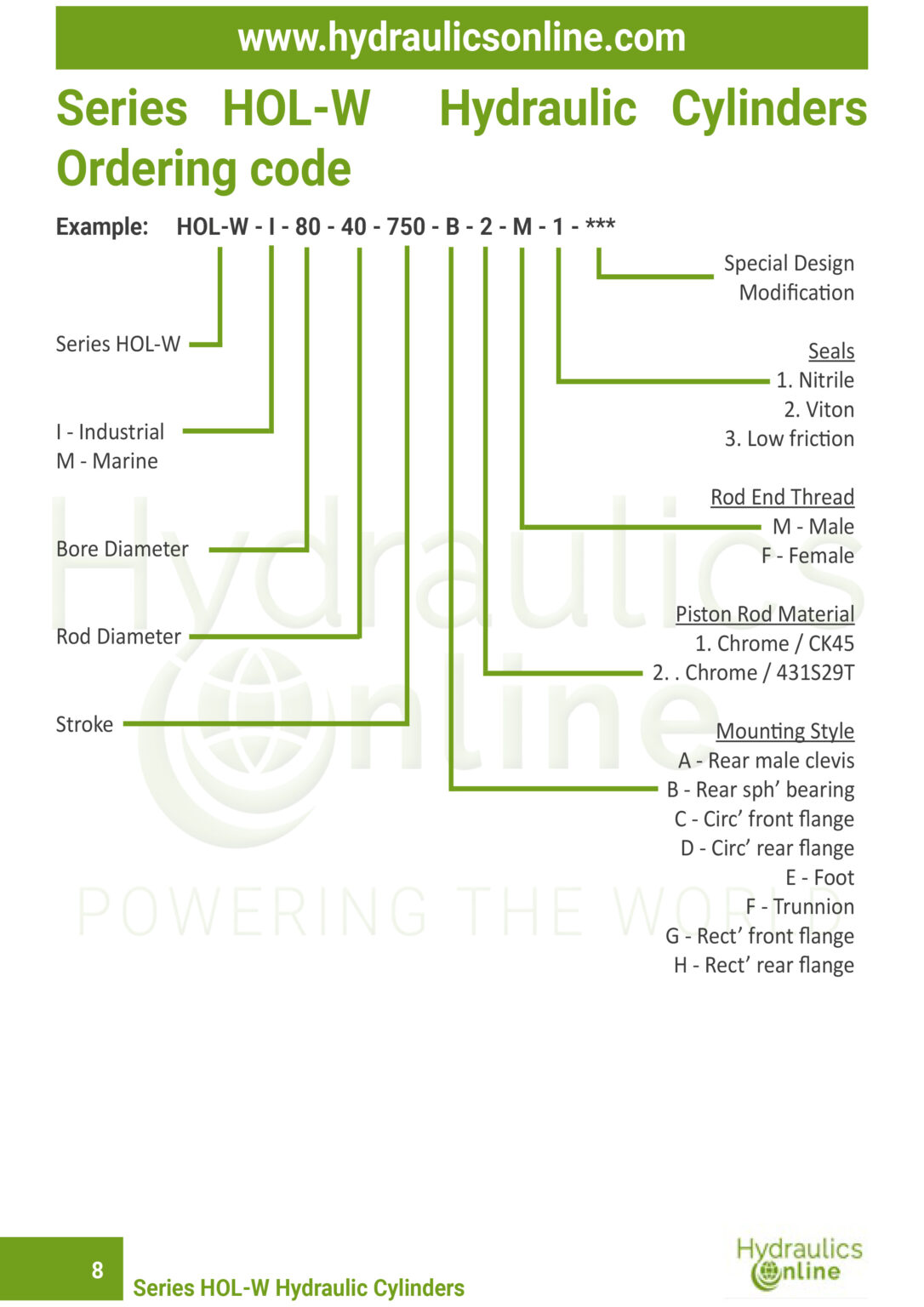

Series HOL-W Welded Hydraulic Cylinders
Industrial and marine specification Series HOL-W hydraulic cylinders have a heavy-duty welded construction. They are available in a wide range of mounting styles, and have a range of accessories and options enabling them to be used for a wide range of applications.
Again, 3D design software is used to allow actuator or cylinder designs to be exported directly into your own machine design. CNC machined component parts ensure part interchangeability, with stocks enabling a quick turnaround on new cylinders and service items.
Series HOL-W hydraulic cylinders are designed with generous internal bearing lengths, using high quality materials in their construction together with proven seal types and a choice of sealing systems and materials. All cylinders are tested to 1.5 x the designed working pressure.
All Series HOL-W hydraulic cylinders can be supplied with: custom-designed mountings, internal full displacement positional transducers, end of stroke sensors, seals for all types of hydraulic fluids and operational speeds. Control valve packages, having valves built directly into the cylinder end cap or manifolded onto the cylinder, are also an option.
The cylinders are supplied as standard in satin black enamel paint, but can be supplied with external surfaces plated or shot blasted, and marine-specification painted.

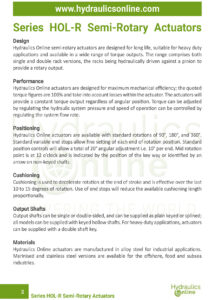

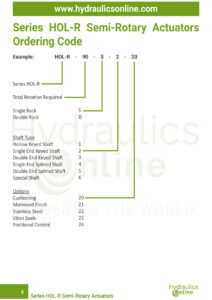

Series HOL-R Semi-Rotary Actuators
Hydraulics Online semi-rotary actuators are designed for long life in heavy-duty applications. Available in a wide range of torque outputs, the range comprises both single and double rack versions, the racks being hydraulically driven against a pinion to provide a rotary output.
Hydraulics Online actuators are designed for maximum mechanical efficiency; the quoted torque figures are 100% and take into account losses within the actuator. The actuators will provide a constant torque output regardless of angular position. Torque can be adjusted by regulating the hydraulic system pressure and speed of operation can be controlled by regulating the system flow rate.
Almost every factor or design feature of Hydraulics Online HOL-R Semi-Rotary Actuators is fully customisable to fit your application. To learn more, download our full HOL-R technical catalogue by clicking the link below.
Download catalogue
We are the first choice for customers in over 130 countries worldwide, supplying a vast selection of hydraulic brands and components. You are guaranteed impartial, technical advice and optimal solutions. Every time.
Learn about hydraulic cylinders and more in our Fluid Power Technical Knowledge Hub…
Hydraulics Technical Knowledge Hub
Sharing our knowledge of all things hydraulic is one of our greatest passions, which is why we’ve created the Hydraulics Online Technical Knowledge Hub!
With everything from free eBooks to advisory articles, it doesn’t matter if you’re a complete beginner, or an industry professional, you can be sure there will be something here for you.
Start Learning
Hydraulic Cylinders: The Ultimate Guide
When people imagine hydraulic systems, they probably picture articulated machines, powered by hydraulic cylinders.
Like muscles to hydraulic systems, cylinders are everywhere – but how do they work and what are the different kinds?
Learn More

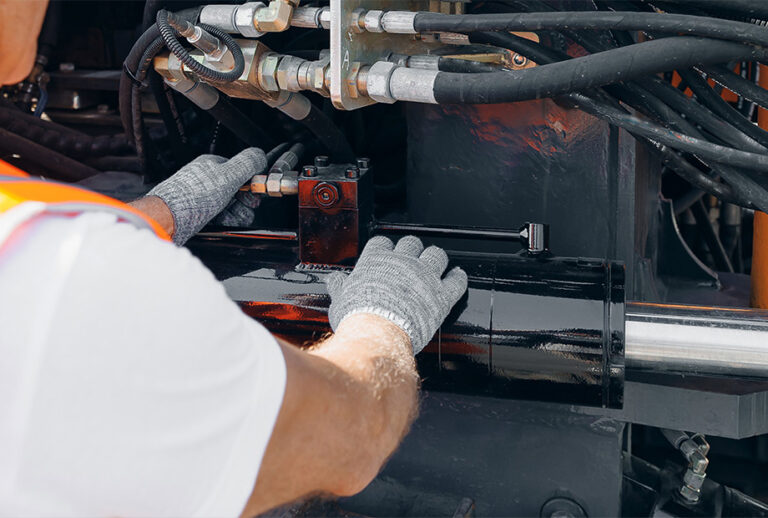

Everything you need to know about Hydraulic Cylinder Maintenance, Testing and Repairs
