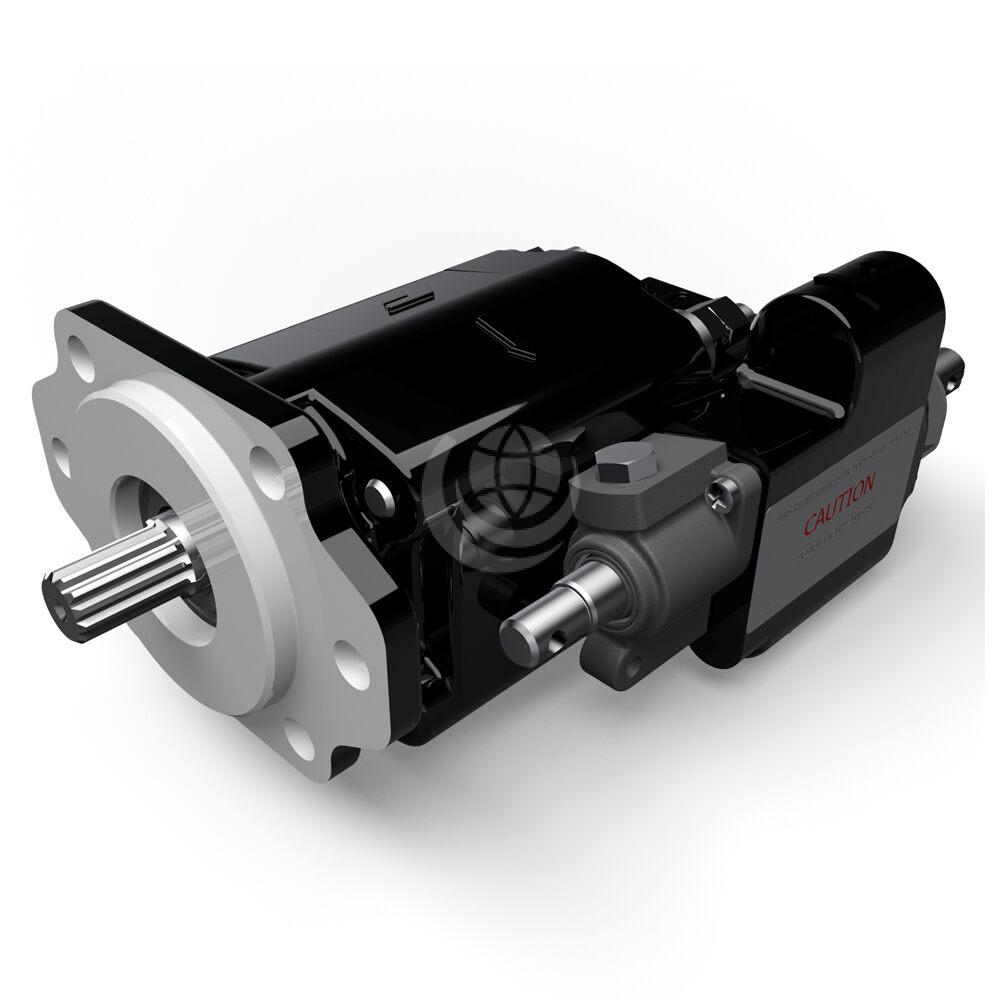

Parker G101 / G102 – Cast Iron Gear Pump

Parker G101 / G102 fixed displacement gear pumps offer high performance and endurance thanks to their cast iron construction. They are ideal for vocational and municipal equipment alike, and are available as a standard pump with integrated valve for raising and lower dump beds, with integral relief valve.

Summary technical specifications:

• Flow, 64 litres/minute
• Displacement, 64.6 cc/rev
• Operating pressures to 138 bar (2,000 psi)
• Speeds to 2,400 rpm
• Volumetric efficiencies of up to 94%
• Clockwise, counter-clockwise and bi-rotational pumps available
• SAE shafts, flanges and porting
• Integrated relief valve and load-hold valve
• Integrated raise/neutral/lower valve
• Air-shift valve available

Download the Parker G101 / G102 Technical Catalogue >>>

Contact us for further technical details and configuration options.
